> Hardinge tb 5/8 quick acting slide tool
Hardinge tb 5/8 quick acting slide tool

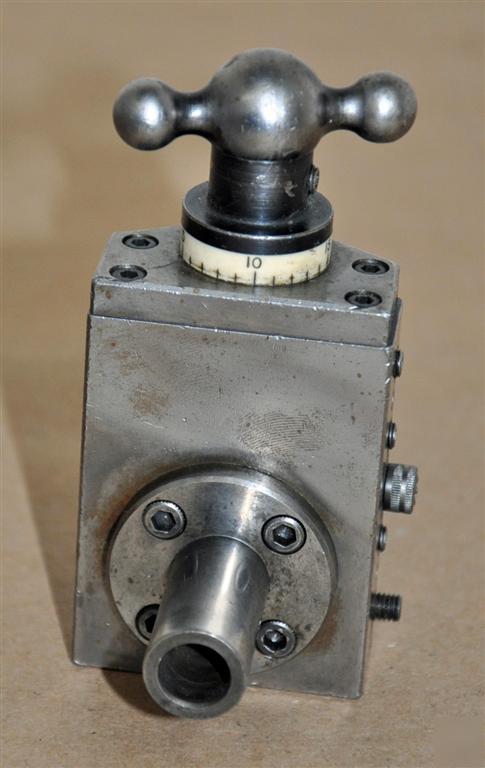

HARDINGE QUICK-ACTING SLIDE TOOL
THE SLIDE TOOL IS USED TO PERFORM TURNING OR BORING OPERATIONS.
THE SLIDE TOOL MOUNTS INTO THE TURRET OR A ROUND SHANK TOOL HOLDER.
THE TOOL HOLDER IS ADJUSTABLE FOR CHANGING A BORE OR TURN DIAMETER USING THE TEE HANDLE WHICH CONTROLS A FINE PITCH THREAD.
THE HOLDER HAS A DIAL THAT IS GRADUATED IN .001" (.03 MM) INCREMENTS MAKING A DIAMETER ADJUSTMENT OF .002" (.05 MM) PER GRADUATION.
THE SLIDE HAS AN OVERALL TRAVEL OF 7/8" (22.23 MM) AND HOLDS 5/8" DIAMETER SHANK TOOLS.
TOOLS WITH A SHANK DIAMETER OF 1/2" OR LESS CAN BE HELD IN THE HOLDER BY USING HDB5 BUSHINGS.
