> 50 x arcade microswitch micro switches hv-15-1C25 15A

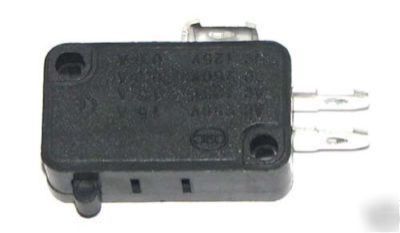

50 x arcade microswitch micro switches hv-15-1C25 15A
* Nice appearance, tight configuration, Characteristic: small contact clearance, quick action, high sensitivity and small operating travel
* Adopt thermosetting plastic or thermoplastic
* Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electric motion tool etc
* Operating speed: 0.1mm-1m/s(related with actuator forms)
* Mechanical operating frequency: 60 cycles/min
* Electrical operating frequency: 25 cycles/min
* Insulation resistance: =100 MO (500VDC)
* Contact resistance: =30 MO (initial value)
* Test voltage: Between terminals of the same polarity: AC1000V, 50/60Hz, 1min; Between current-carrying metal parts and ground (case), and between each terminal and non-current-carrying metal parts: AC3750V, 50/60Hz, 1min
* Vibration resistance: 10-55Hz,1.5mm Double amplitude
* Destruction shock resistance:
OF>0.5N: 1000m/ s2 (approx.100G)max; OF=0.5N: 400m/s2(approx.40G)max;
* Malfunction shock resistance:
OF>0.5N: 200m/ s2 (approx.20G)max; OF=0.5N: 100m/ s2 (approx.10G)max
* Mechanical life span: =1,000,000 cycles
* Electrical life span: =100,000 cycles
* Soldering temperature: 250 C Max 3 sec.
* Ambient temperature used: -25 C to +80 C
* Ambient humidity used: <85% RH
Air mail delivery time(only for referenced):
about 10-25 business days to USA/Australia/Canada.
Italy or Russia or Eastern Europe/other remote cities.
You should expect to pay duties & taxes, if any, charged by the government in your country. Although it never happen before.
New guarantees. Our items all 100% new and never used.
In order to protect your rights, double-check before you sign.
You could ask for return in the following situation:
2.There are differences between the goods you received and the description on our website.
Return Process: ask delivery people to return the goods and contact us asap, time the resend goods arriving will postpone.
Wholesale guarantee. We have enough stock for all items. We have lowest price and highest quality. If you need wholesale can contact our email: ****@hotmail.com
Any questions or problems please email let us know. Then we can help you solve. All questions will reply within 24 hours because we have different working time.
