> Attic ladder smart scissors -25X47 fakro lst diff sizes
Attic ladder smart scissors -25X47 fakro lst diff sizes
Available sizes: 22x31 22x47 22x54 25X47 25X54 27X31- Emai lme for pricing or check my store.

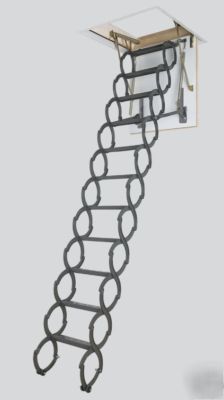

The LST attic ladder provides an easy and safe access to the attic. The scissors construction makes ladder folding possible. A 1 3/8" thick, white, finished wooden door with an approximate R value 5.2 significantly reduces heat loss. A peripheral seal in the lower part of the box guarantees first-classtightness. The S-shaped strings give a modern appearance and perform the role of a handrail, facilitating climbing the ladder.
The scissors system of folding the ladder and the possibility to lock the hatch in a fully open position ensure an ease and safety of operation. The small ladder dimensions, achieved thanks to the unique system of folding, allow the ladder to be installed in smaller openings. Safety is ensured by the application of rounded side supporters and remaining hardware which do not pose any risk of injury. The outer (visible) side of the door is smooth without any visible fixing elements.

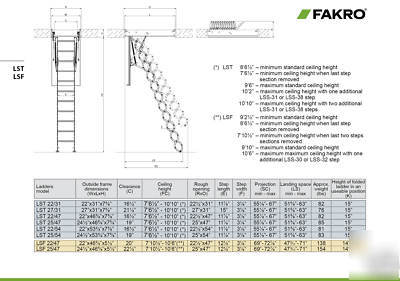

* 8'6'' - MIN STANDARD CEILING HEIGHT
* 7'6'' - MIN STANDARD CEILING WHEN LAST STEP SECTION REMOVED
* 9'6'' - MAX STANDARD CEILING HEIGHT
* 10'2'' - MAX STANDARD CEILING HEIGHT WITH ONE ADDITIONAL LSS-31 step
* 10'10'' - MAX STANDARD CEILING HEIGHT WITH TWO ADDITIONAL LSS-31 steps
* 1 thick insulated white finished wooden door approximate R value 5.2
* Rubber gasket seal virtually eliminates
* All hardware fully concealed after installation
* Nearly invisible integrated locking latch
* Solid metal opening and closing rod
1. Scissors metal ladders. Solid and very durable constraction
2. Fits ceiling heights up to 10 10
3. Special springs drop downward while door opens in order to clear a walking area and make wider loading space (LSF only)

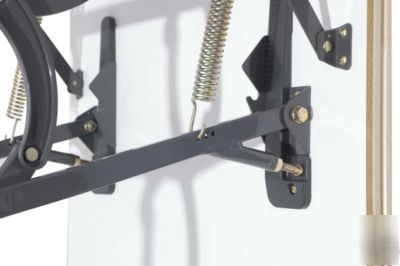

4. Patented door hinge increase durability and safety
5. When door is unlocked, adjustable springs never allow door with stairs to drop lower than set limit
6. Anti slip grooves on surface of each step for your safety
7. Special wheels at end of ladder to prevent floor scratching
8. No fixing points visible once installed
9. Lining covering frame ceiling joint
10. Easy ladder adjustment without cutting
11. Construction of side scissors rails, eliminate need to use extra handrails
12. Two (2) years 100% warranty
13. Installation instruction included in every box
14. Fully assembled very easy to install
