New buyers salt electric poly hopper spreader SHPE0750
SaltDogg Electric Drive Hopper Spreaders
IDEAL FOR MUNICIPAL & COMMERCIAL APPLICATIONS.
Material Hopper Rotationally molded double-wall polymer unibody spreader with smooth angled walls to maximize material flow. Features integrated positive position mount system plus 4-piece ratchet tie-down kit. No drilling required. (Molded fork slots in hoppers makes for easy one man installation & removal, requires extended fork, or lift from 4-point tie downs.)
Auger 2.5" dia. screw-type auger system travels the length of the hopper floor, providing maximum material flow at a continuous rate. An independent spinner/auger controller allows for both independent spinner speed and an infinitely adjustable ratio between spinner and auger.
Material Flow/Output Salt, 2.2 cu. ft./minute; Salt/Sand, 1.3 cu. ft./minute. Spread width is variable from 5 to 38 feet.
Spinner Chute Assembly A 11.5" polymer disc is connected to a 3/4" diameter shaft. The spreading material is guided from the stainless steel trough to the spinner plate through an enclosed heavy-duty polymer chute and spinner assembly with an external deflector. The extra-wide adjustable deflector protects the vehicle and allows for complete directional spread control and full or compact spread. Total spread path ranges from 5' to 30'. A convenient spring-latch locking mechanism allows the spinner assembly to be removed for cleaning/storage.
Electric Motors Two ultra-quiet 12-volt DC direct-drive motors power the auger and spinner, and are encased in a heavy-duty poly housing along with two independently powered vibrators. The wiring harness is constructed of 10-gauge automotive wire with non-combustible sheathing (-50 C to -105 C). An in-cab console features independent controls for the auger, spinner and vibrator.
Standard Equipment 1/4" black powder coated steel top screen. Heavy-duty poly-vinyl tarp with reinforced corners and tie-down kit. Heavy-duty 12 VDC vibrator, rated at 210 of force pounds for maximum performance. Spreader hold-down kit.
3014199 Variable Speed Controller

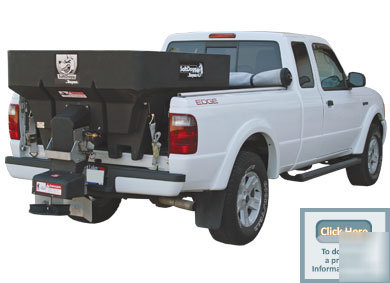

SHPE0750 mounted on a utility vehicle
