Leica MZ6 stereo microscope, schott fostec ace light

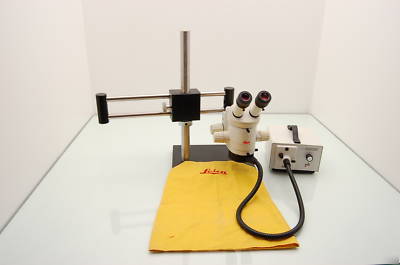

Leica MZ6 Stereo Microscope, Aven Boom Stand, Schott Fostec ACE Light Source
Functionally, the scope and all accessories are in perfect condition. Here is your chance to own a complete microscope setup for a fraction of the cost of just a new microscope!
* Leica MZ6 Stereo Microscope
* Leica Wild 445111 10X/21B 10X eyepieces
* Aven ball-bearing supported adjustable boom stand.
* Fostec ACE EKE Adjustable Intensity Light Source with adjustable aperture
* Fostec Fiber Optic Light Ring
* Yellow Leica microscope cover
The Leica MZ6 Microscope has the following features:
* Full stereo microscope for 3-D images
* Scope zoom: 0.63X - 4X
Ultra flat field of view, with resolutions up to 450 line-pairs/mm
Infinity optical system assures fatigue free viewing
5 engageable positions for exact magnification reproducibility.
Basic magnification range with 10x eyepieces; 6.3x - 40x, extended range 2x-320x.
Field of view diameter range with 10x eyepieces; 4.2mm - 26.6mm, extended range 0.8mm - 104.2mm
Basic working distance; 89mm, extended range 27mm - 297mm
Motor focus for repetitive tasks
Achromatic, planachromatic and planapochromatic objectives
360 rotatable optics carrier
Stereoscopic or vertical observation
Complete interchangeability of accessories between other similar Leica stereomicroscopes
More options and accessories than any other manufacturer
ZeroStat antistatic coating
Constant sharpness throughout the 6.3:1 magnification range (parfocal)
Coarse/fine focusing and motor focus for repetitive tasks
The Schott Fostec ACE Light Source has the following features:
* 150 Watt EKE bulb for bright illumination
* Fully adjustable light intensity
* Removable / interchangeable fiber optic tubes
Solid State Dimmer for Continuous Control Zero to Full Intensity
Heavy Duty, Grounded Metal Housing
IR Interference Filter for Cool Illumination
Full Illumination on .60" Active Diameter Input
Built-In Thermal Shut Down
The Aven Ball Bearing Boom Stand has the following features:
* 40 lb. steel base for stability
Stability of the standard boom stand but with ultra smooth movement of a ball bearing slide
Great for inspection applications where magnification adjustment and the ability to move across a specimen are important
Moveable safety clamp included
Click on the link below for more information on this microscope:
Schott Fostec Light Source Datasheet
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The Leica MZ6 Stereo Microscope and accessories are sold guaranteed with a 7 day Right Of Return.
