> New fluke OC3PORT OC3 port plus + DS3PORT DS3 port plus

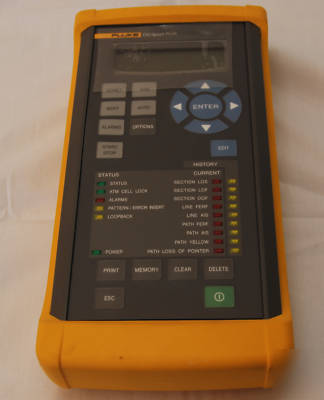

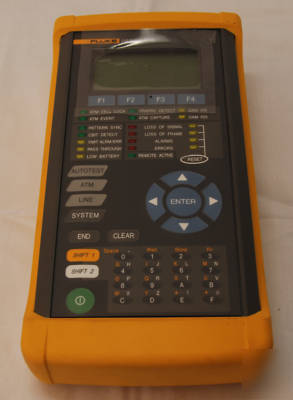

New fluke OC3PORT OC3 port plus + DS3PORT DS3 port plus

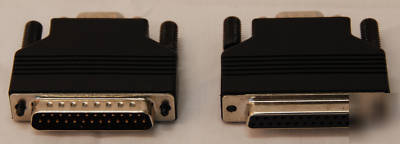

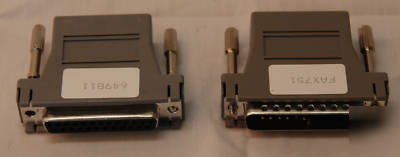

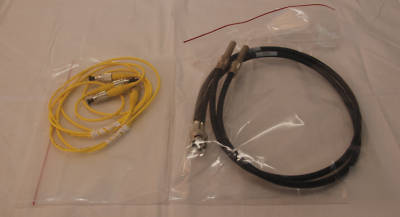

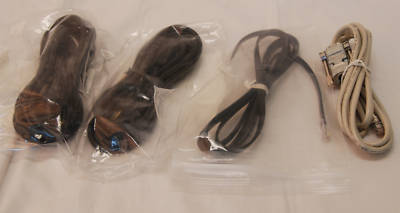

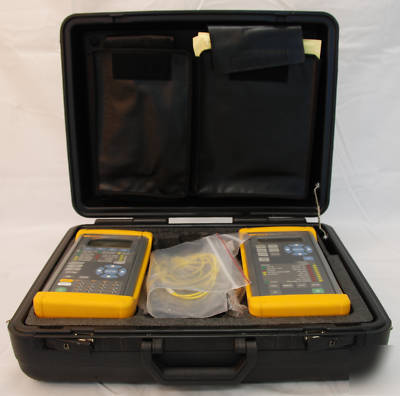

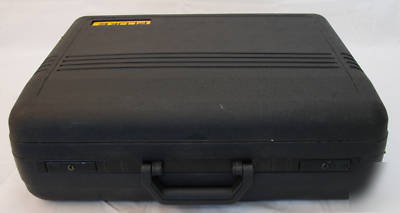

RARE OPPORTUNITY.....This is a set containing TWO Brand New Meters - an OC3port Plus and a DS3port Plus. These come in the original manufacturer case and everything is included (the manual, cords,
We would consider selling each meter individually, but prefer to sell it as a set (as originally packaged and sold by Fluke). Please ask if you have any questions.
Bit rate: 155.52 Mbps 20 ppm
Minimum receive sensitivity: -28 dBm
Minimum receive sensitivity: -32.5 dBm
UTP-155 version: ATM Forum UTP-155-PMD compliant
Average output power: -12.5 dBm (typical)
Center wavelength: 1260 to 1360 nm, spectral width: 7.7 nm
Average output power range: -19 dBm to -14 dBm
Center wavelength: 1270 to 1380 nm, spectral width: 130 nm
Transmit level: 0.90 - 1.10 Vpp
Size: Approximately 10 in (L) by 6.75 in (W) by 2 in (H)
Display: Back-light, 4-line by 20-character text
Single-mode version: FC/PC or SC Duplex

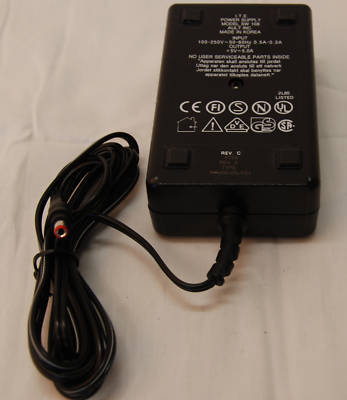

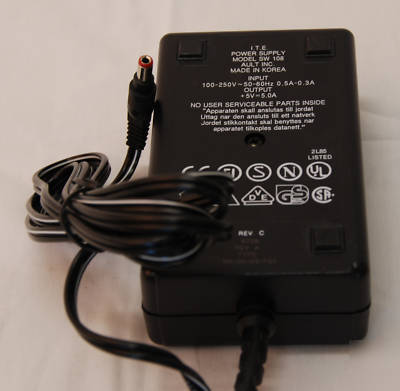

AC operations: Operates from an external AC adapter/charger.
Battery type: Operates from internal rechargeable Ni-Cad battery.
Battery life: Minimum battery life is three hours of continuous use.
Operating temperature: 0 C to 50 C
Storage temperature: -20 C to +60 C
Humidity: 5 % to 90 % non-condensing
Flow control: XON/XOFF or RTS/CTS
Applicable sections of ATM Forum UNI 3.1
Applicable sections of ANSI T1.105
Applicable sections of BellCore TR-NWT-000253
Applicable sections of ITU I.432, ITU I.610, and ITU I.510
Instrument complies with ETL product category 31
Instrument complies with FCC Part 15, Subpart B, Class A
Section, Line, and Path Bit Interleave Parity errors; Line and Path Far-End-Block
Signal Loss, Loss of Frame, Line FERF, Line AIS, Path FERF, Path AIS, Path
YELLOW, Loss of Pointer alarms.
Signal Loss, Loss of Frame, Line FERF, Line AIS, Path FERF, Path AIS,
SDH option available which provides control and monitoring of S-bits.
Positive and negative pointer adjustment, programmable pointer value, viewable
received pointer value: current, minimum, and maximum.
Cell mapping: ATM cells carried in the OC3 payload are byte-aligned.
Cell rate adaptation: Provided by the insertion of idle cells.
Cell delineation: Performed using the HEC mechanism as described in ITU I432.
HEC is generated and checked as described in ITU I.432.
