Sprint electric model 1600I/t dc drive module

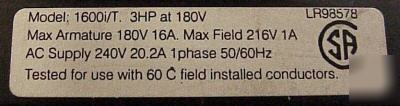

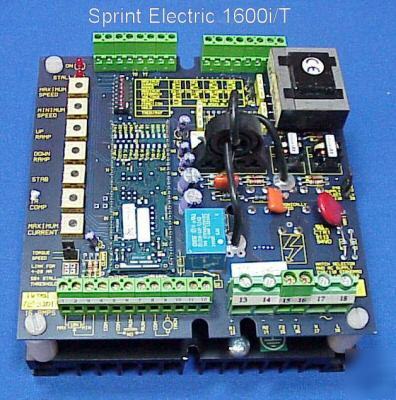

Sprint Electric Model 1600i/T DC Drive Module 2.2KW/3HP
* For DC motors up to 16 AMPS
* On board relay indicates zero speed and/or motor overload
* Torque control input for basic winding or tension control, with overspeed limiting
* PLC compatible input and output signals
* Fully isolated electronics
* User adjustable: acceleration, deceleration, max motor speed, min motor speed, IR comp, stability, and max motor current
* Inputs: +aux, -aux, current, 4-20mA, 0-10V
* Outputs: speed, current, ramp, demand, zero/stall relay, +24V unregulated, +12V regulated, +10V precision reference, -12V regulated, -24V unregulated
* Extra 50% peak torque for rapid acceleration or shock loads
* Switched maximum current ranges for easy matching to motor current rating
* Adjustable stability control for optimum motor response
* Dimensions: 150 x 150 x 90 mm
* Extra 50% peak torque for 30 secs prior to stall trip operation
* AC Supply Voltage - 240/110vac
These were removed from working equipment and are in excellent condition.
