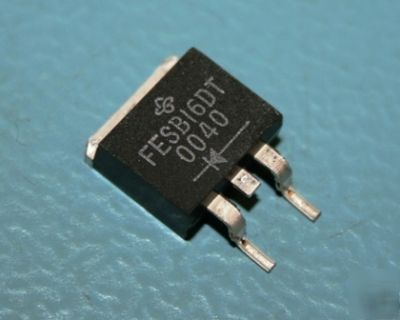

FESB16DT diode ultrafast 16A vishay electronic part n
Manufacturer: VISHAY GENERAL SEMICONDUCTOR
Manufacturer Part No: FESB16DT
* Temperature, Operating Range:-65 C to +150 C
* Case Style, Alternate:TO-263
* Length / Height, External:4.83mm
* Voltage, Forward at If:0.975V
FEATURES Glass passivated chip junction Ultrafast recovery time Low switching losses, high efficiency High forward surge capability Meets MSL level 1, per J-STD-020, LFmaximum peak of 245 C (for TO-263AB package) Solder dip 260 C, 40 s (for TO-220AC andITO-220AC package) Component in accordance to RoHS 2002/95/ECand WEEE 2002/96/ECTYPICAL APPLICATIONSFor use in high frequency rectifier of switching modepower supplies, inverters, freewheeling diodes,dc-to-dc converters, and other power switchingapplication.MECHANICAL DATACase: TO-220AC, ITO-220AC, TO-263ABEpoxy meets UL 94V-0 flammability ratingTerminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102E3 suffix for consumer grade, meets JESD 201 class1A whisker test, HE3 suffix for high reliability grade(AEC Q101 qualified), meets JESD 201 class 2whisker testPolarity: As markedMounting Torque: 10 in-lbs maximum
