> Agilent hp N2264A multifunction module, used & working
Agilent hp N2264A multifunction module, used & working
Agilent HP N2264A Multifunction Module Used
(12General Purpose +3 High Current relays +16-bit Digital I/O)

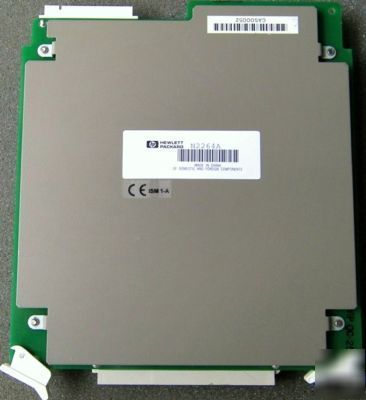

Model: Agilent HP N2264A Multifunction Module as shown in the photos
Qty-1: Agilent HP N2264A Multifunction Module as shown in the photos.
Agilent HP N2264A Multifunction Module
The Agilent N2264A multifunction module combines 12 general purpose relays, three high current relays, and a 16-bit digital input/output in one module. The N2264A is designed for applications that require multiple functions in one module for space saving and system cost saving. Its three high current channels are especially useful in automated test systems for cellular phone test or battery test where only two or three high current channels are needed.
The 12 general purpose channels are non-latching relays which can switch up to 200 V, 1 A ,60 W or 62.5 VA. The three high current channels are non- latching relays, switching up to 5 A, 125 V DC or 200 V AC RMS. The 16 bits digital I/O provides 16 bi- directional data lines (bits) plus three lines used for control and handshaking. The 16-bit I/O lines are TTL compatible input/output, or TTL compatible input and open collector output up to 42 V. The 16 I/O bits can be addressed individually (bit-by-bit), or as two independent 8-bit ports, or as one 16-bit port. A Zener diode is used in each channel for input voltage over protection (>42V DC), and ESD protection. Each I/O line can sink up to 0.6 A to control external devices.
