Topcon gps hiper xt
Topcon continues to lead the satellite positioning industry with the most advanced, innovative receiver designs available. The extremely successful HiPer series of compact, integrated GPS receivers, set the new design standard for mobile receivers. Now Topcon has once again designed a receiver that outperforms all the rest the new HiPer XT.
As with many Topcon receivers before it, the new HiPer XT receiver boasts several design advantages that separate it from any other receiver. Many of these features are World's Firsts:
* Completely cable free base & rover or rover & rover RTK GPS System
* World's First 2-watt UHF Transmit & Receive system with built-in cellular modem
* Dual constellation (GPS+GLONASS) satellite positioning technology
* 40 channel all-in-view signal tracking ability
* Industry leading 20Hz fast update rate
* Upgradeable receiver options through simple computer codes
At the heart of this new system is Topcon's new XT (e X tended T echnology) system design. This new receiver design provides a user with two forms of RTK communication all inside one compact, lightweight housing. The HiPer XT incorporates both a transmit and receive 2-watt UHF radio and a cellular modem. The new Topcon HiPer XT system gives you two systems in one. Use two HiPer XT receivers as a base and rover system for areas outside reliable digital cellular coverage. When operating in an area of reliable cellular coverage or within an RTK network system, use both HiPer XT receivers as rover units to double your productivity and efficiency!
The HiPer XT also incorporates Topcon's leading dual-constellation (GPS+GLONASS) tracking technology which provides 40% more satellite coverage than GPS alone. This added advantage virtually eliminates downtime due to poor satellite coverage or in difficult environments where satellite obstructions knock out GPS only systems.
So when considering your precision GPS options, take a good look at the new HiPer XT. We're confident you'll see for yourself what everyone's talking about.
40 channel integrated GPS+ receiver/antenna with MINTER interface.
standard: 40 L1 GPS (20 GPS L1+L2 on Cinderella* days)
optional: 20 GPS L1+L2 (GD), GPS L1 + GLONASS (GG), GPS L1+L2+GLONASS (GGD)
L1/L2 C/A and P Code & Carrier and GLONASS
Horizontal: 3mm+ 0.5ppm (x baseline length)
Vertical: 5mm+ 0.5ppm (x baseline length)
Internal Lithium-Ion batteries plus 1 external power port
Aluminum extrusion, waterproof
-30 C to 55 C / -22 F to 140 F
W:159 x H:172 x D:88 mm / 6.25" x 6.75" x 3.5"
Antenna on a flat ground plane
Bluetooth version 1.1 comp.**
4x3-color LEDs (Green, Red, Yellow), two-function keys (MINTER)
External: FC-2000, FC-1000, FC-100, Ranger, or 3rd Party
Up to 20 times per second (20Hz)
Code and Carrier from L1 and L2, GPS and GLONASS
RTCM SC104 version 2.1, 2.2, 2.3, 3.0, CMR, CMR+

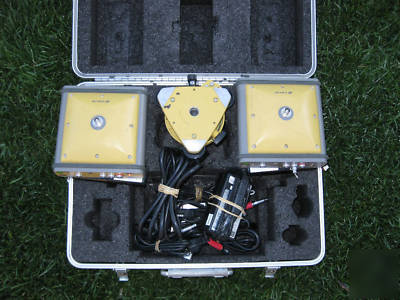

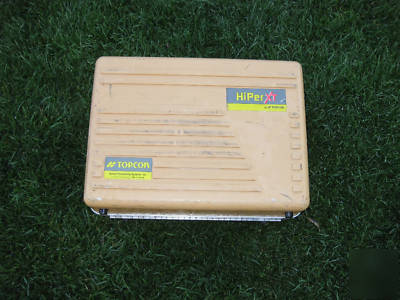

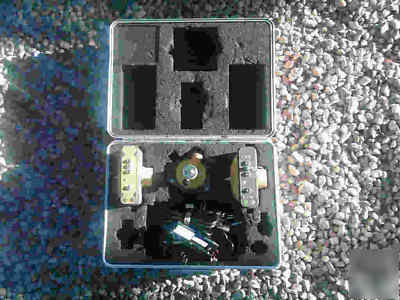

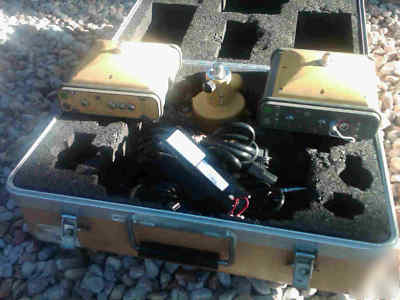

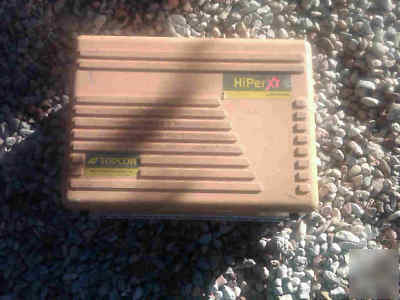

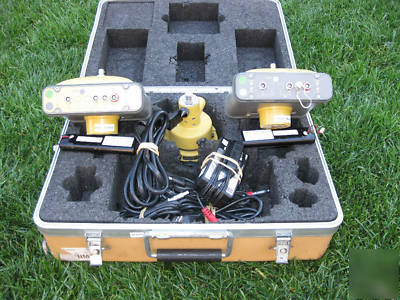

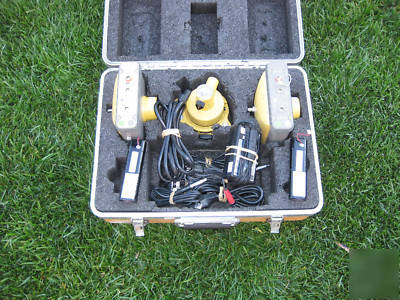

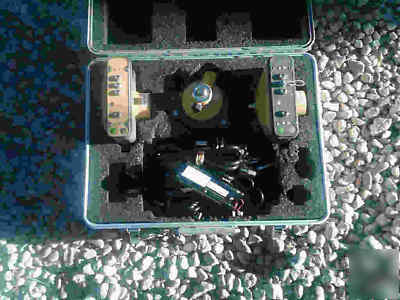

This a lightley used system, has all items in pictures, does not include software or antennas, (laptop bag with software & antenna's was stolen from my truck).
* has 2 wall chargers, with 12 volt attachment (battery clips)
* 4X serial (RS232) port cable
* 2 External Lithium-Ion Batteries
Contacted Topcon, maybe set mind at ease.
From: "****@topconsokkia.com" <****@topconsokkia.com>
Sent: Mon, May 24, 2010 8:49:41 AM
Subject: Incident Number A5N8544694 Application
Topcon does not keep an active record of equipment that has potentially been stolen. If you have questions regarding the unit; you could contact a local dealer for direct assistance.
http:// /static/dealer_pointer.php
Tech Support/GPS/Hardware/Geodetic Receivers/HIPER XT
Own Topcon Hiper XT, how do I find out if it's stolen?
Have downloaded all updates, Firmware Version 3.4p2 - 01/21/2010
These are the options from the unit itself.
Glonass Yes Yes Yes 11/16/2005
Cinderella Yes Yes Yes 11/16/2005
Position Update Rate, Hz 20 5 20 11/16/2005
Raw Data Update Rate, Hz 20 5 20 11/16/2005
Code Differential Base Yes No Yes 11/16/2005
Code Differential Rover Yes No Yes 11/16/2005
RTK Base Yes Yes Yes 11/16/2005
RTK Rover, Hz 20 5 20 11/16/2005
Memory, MB 1,024 4 1,024 11/16/2005
Co-op Tracking Yes Yes Yes 11/16/2005
1-PPS Timing Signal Double No Double 11/16/2005
Event Markers Double No Double 11/16/2005
In-Band Int. Rejection Not supported Disabled Enabled Outside USA 11/16/2005
Multipath Reduction Yes Yes Yes 11/16/2005
Frequency Input Yes No Yes 11/16/2005
Freq. Lock and Output Yes No Yes 11/16/2005
Serial Port A Max Baud Rate 460 460 460 11/16/2005
Serial Port B Max Baud Rate 460 460 460 11/16/2005
Serial Port C Max Baud Rate 460 460 460 11/16/2005
Serial Port D Max Baud Rate 460 460 460 11/16/2005
Ethernet Port Yes No Yes 11/16/2005
USB Port Yes Yes Yes 11/16/2005
Infrared Port Not supported No Yes 11/16/2005
Parallel Port Not supported No Yes 11/16/2005
TCP Connection 5 Disabled 5 11/16/2005
FTP Connection Yes No Yes 11/16/2005
Datums Support Yes Yes Yes 11/16/2005
Magnetic Azimuth Yes Yes Yes 11/16/2005
Geoid Height Yes Yes Yes 11/16/2005
Way Point Navigation Not supported No Yes 11/16/2005
Omnistar Not supported No Yes 11/16/2005
DGPS Mode Yes Yes Yes 11/16/2005
RTK Mode, Hz 20 5 20 11/16/2005
RTCM Output DGPS & RTK DGPS & RTK DGPS & RTK 11/16/2005
RTCM3 Input Yes Yes Yes 11/16/2005
RTCM3 Output DGPS & RTK DGPS & RTK DGPS & RTK 11/16/2005
CMR Output Yes Yes Yes 11/16/2005
CMR Input Yes Yes Yes 11/16/2005
Sp.Sp. Freq. Hop. Not supported No Yes 11/16/2005
Sp.Sp. Direct Not supported No Yes 11/16/2005
CDU Support Not supported No Yes 11/16/2005
Carrier Phase Yes No Yes 11/16/2005
Attitude Determination Unit Heading, and Pitch Disabled Heading, Pitch, and Roll 11/16/2005
Authorization 3 0 3 11/16/2005
TPS Output Yes Yes Yes 11/16/2005
RTK Distance, km No restrictions No restrictions No restrictions 11/16/2005
Corrections Inputs A B C D A B C D A B C D 11/16/2005
Latitude 1 90 90 90 11/16/2005
Latitude 2 -90 -90 -90 11/16/2005
Longitude 2 360 360 360 11/16/2005
Latitude 3 90 90 90 11/16/2005
Latitude 4 -90 -90 -90 11/16/2005
Longitude 4 360 360 360 11/16/2005
Lat_Lon Checksum 1 396 396 396 11/16/2005
Lat_Lon Checksum 2 396 396 396 11/16/2005
OmniStar VBS/HP Disabled Disabled Disabled
L2C Support Not supported No No
