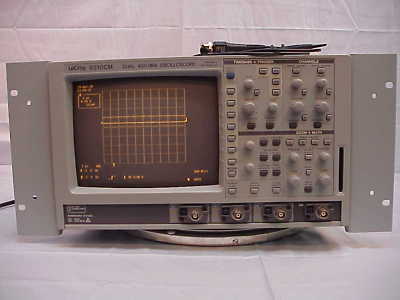

Lecroy 9310CM 400MHZ 2CH oscilloscope w/probe hp-ib
100MHz 10x/1x Probe. The M refers to increased memory from 50K per Channel to 200K per channel.
Includes operating manual on CD
@ 1 MW: DC to 230 MHz typical at probe tip
Max. Sample Rate: 100 MS/s simultaneously on each channel
Sensitivity: 2 mV/div to 5 V/div, fully variable
Scale Factors: Wide range of probe attenuation factors
DC Accuracy: 2 % full scale (eight divisions) at 0 V offset
Max. Record Length: 200000 pt/sec
Min. Vertical Sensitivity: 2 mV/div
Maximum Vertical Sensitivity: 5 V/div
Input Impedance (alternate): 50 Ohm
Maximum Input Voltage: 250 Vrms
Trigger Source: External and Internal
Trigger Modes: Auto,Edge,Normal,Single,State,Stop,Width
Display modes: Infinite, Normal, Varable, X/Y
1 NEW P2100 100MHz 10x/1x Probe & Power cord
