> Redi controi inc. refrigerant recoverysystem-rs-503/13H

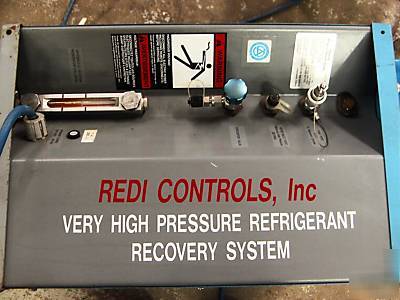

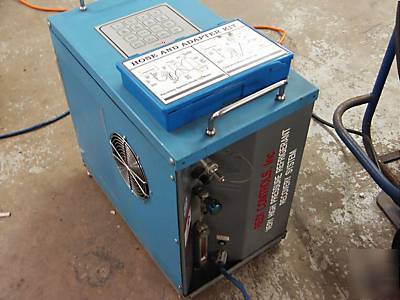

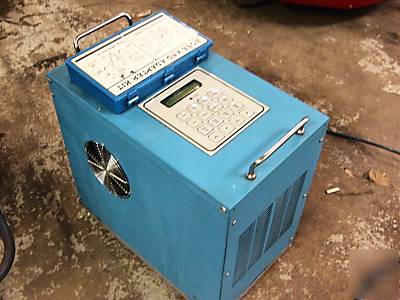

Redi controi inc. refrigerant recoverysystem-rs-503/13H
Very High Pressure Refrigerant Recovery System. 250 PSIG Vapor only.High side 2000 PSIG,Low side 450 PSIG.
Electrical Power Requirements: 120 VAC, 60 Hz., 1-Phase, 15 Amp
Dimensions: 21 height x 21" length x 12 " depth
Recovery Rate: .3 lbs/minute (
The Recovery Unit is be specifically designed to recovery the very high pressure
refrigerants , R-13, R-23,R-503,R-13B1 and (SUVA-95)
The unit is totally self contained and portable (compact and lightweight). Unit
DOES NOT REQUIRE pneumatic air, or ice baths to function
1. Portable (compact, lightweight)
6. Recovers directly into any size DOT-3AA Refrigerant Cylinder
7. Recovery Rate 0.3 lbs./min. (average)
9. Non-Ambient Temperature Sensitive
D. Net Weight: 110 lbs (approximately)
