Omega CL25 calibrator - thermometer
Omega CL25 CALIBRATOR - THERMOMETER

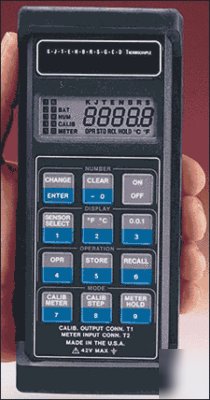

The Omega CL25 is a high precision handheld calibrator / thermometer.
0.5 F Accuracy Over the Range of 18 C to 28 C (64 F to 82 F)
The OMEGA CL20 series calibrator/ thermometers simulate, measure and record RTD, ohm, thermocouple and thermistor signals all in one meter. This handheld meter outperforms the competition in the lab and on the factory floor with 0.5 F accuracy and in ambient temperatures from 18 to 28 C (64 to 82 F).
Handheld Meter, K,J,T,E,N,R, S,B,G,C,D (Accuracy: 0.5 F full scale K,J,T,E,N 1.5 F full scale B,R,S,G,C,D )
Display: 5-digit LCD custom indicators for calibration type, units hold, recall, store, operating mode, bal, loaded memory locations (up to 10)
Configuration Retention: selected operating mode, thermocouple type, units, resolution and memory contents retained on power off
Diagnostics: low battery, open input, invalid keypad entry, out of range, internal hardware fault
Accuracy: see ordering matrix in pdf spec sheet for details
Input Current: 50 nA typical (meter mode)
Output Load: 100 ohms, min. (calibrator mode)
Max. Common Mode Voltage: 42 V peak to earth ground
OMEGA CL25 CALIBRATOR - THERMOMETER ONLY.
