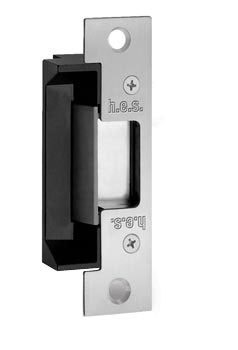

Hes 5000 electric strike 12/24VDC /no faceplate opt
The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. This includes narrow style aluminum jambs and jambs with protruding glass inside. The field selectable fail secure/fail safe unit is easy to install and accommodates 5/8" latchbolts.
UL 1034, burglary-resistant listed
DC Continuous Duty/AC Intermittent Duty
Endurance rating 500,000 cycles
Field selectable fail secure/ fail safe
Dual voltage 12 or 24 VAC/VDC
Accommodates 1/2 - 5/8 latchbolt (with 1/8 door gap)
154 - MTK Metal template kit
2001 - Plug-in bridge rectifier
Four press fit stackable lip extensions
501 For use with cylindrical locksets in ANSI metal jambs.
ANSI/BHMA Numbers: #E09321, #E09322, #E09323
501A - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames.
501B - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum doors and frames with radiused front.
502 - For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames.
503 - For use with cylindrical locksets. Includes universal mounting tabs.
503B - For use with cylindrical locksets. Faceplate is beveled. Includes universal mounting tabs.
504 - For use with cylindrical locksets. Four point mounting for wood installations.
