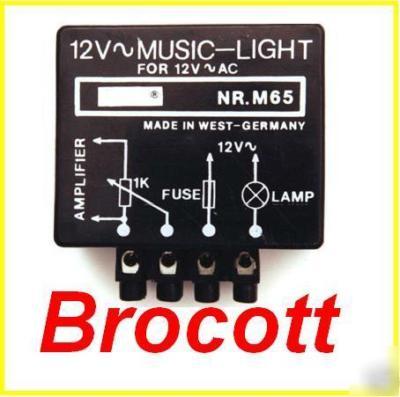

Flasher unit for music lights - 50WATT / 12VAC
12 Volt AC Music Halogen Light Flasher
12VAC Music Halogen Light Flasher
Sensitive music light for 12V lights or halogen lamps up to max. 50W. The unit can be connected to an amplifier or other audio outputs that will cause the connected light to flash with the beat. The flasher unit will give a set flash but if you want to control the sensitivity then a 1K Ohm Linear potentiometer is required for the sensitivity adjustment.
Operating voltage: 12VAC transformer. Not suitable for DC current.
* Operating voltage: 12VAC (transformer)
* Adjustment: through external Pot 1k linear.
* Connection: at the loudspeaker output of an amplifier or radio
* Dimensions: approx. 53 x 57 x 28 mm
