Laser level multi line horizontal vertical and point

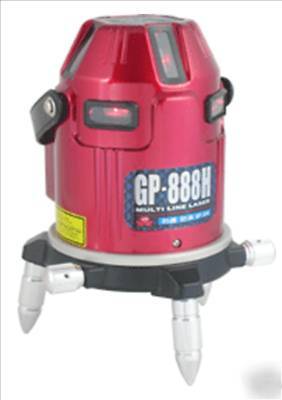

GPI Precision Inc, Multi Line Laser Level 4 Vertical 1 Horizontal 1 Down Point
Electronic compensator ensures more quick self-leveling
Working range up to 80m radius
Manual grade for both X& Y axis: instead rotary laser within 80m( with detector )
3 levels laser power auto adjustment: auto switching laser power to lower level when battery is not enough for high laser power
3 levels laser power manual adjustment: adjust brightness according to working field for saving power
Build-in maintenance recording software system
LED indication for tilt direction
LED indicates Leveling and Leveling is done (laser blink or sound alarm optional )
Low power indication with Red LED (Sound alarm optional )

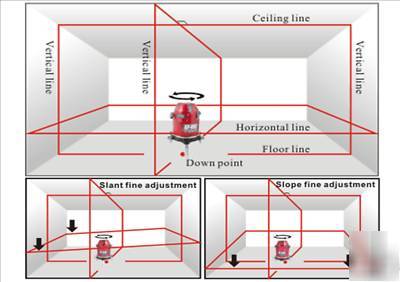

* Beam 4Vertical-4Horizontal 1Down
* Light sources 635 nm laser diode / floor point 650nm (High Power)
* Anti-dust & Anti-water IP-54
* Accuracy 1mm / 10m (1/8@100 ft)
* Self-leveling range 3.5 deg.
* Working range Radius 70~80m (230-260 ft) (with detector)
* Power supply 4 XAA alkaline batteries / rechargeable batteries / AC adaptor
* Working temperature -10C ~ to +40C
* Dimension 152mm x 223mm (6in. X 8.8 in)
* Weight 1.9kg (including batteries)
Standard Accessory Aluminum carrying case, Laser glasses, Alkaline battery, L-shaped acrylic plate, manual
