> Anritsu MS8604A 100HZ-8.5 ghz spectrum analyzer demod
Anritsu MS8604A 100HZ-8.5 ghz spectrum analyzer demod

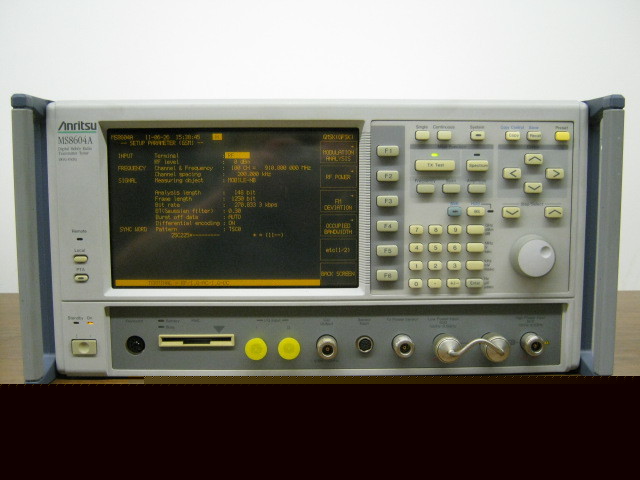

Anritsu MS8604A 100Hz-8.5 GHz Spectrum Analyzer Demod
Powers up, fully operational with the exception of the RPG .
Selling as a 100 Hz to 8.5 GHz Spectrum analyzer with AM and FM Demodulation. This unit is fully loaded and includes Option 03 to perform I/Q oscillator measurements under the constraints of earlier protocols. ( It is not going to test the latest and greatest...)
Shown measuring a modulated 8GHz signal and a noise floor of < -112dbm
Spectrum Analyzer specifications:
* Frequency: Range: 100 Hz to 8.5 GHz (resolution: 1Hz)
* Preselector range: 1.7 to 8.5 GHz
* Span: 0 Hz, 100 Hz to 8.5 GHz
* RBW: 100 Hz to 3 MHz (3 dB), 1-3 sequence
* VBW: 1 Hz to 3 MHz, Off, 1-3 sequence
* Amplitude range: Average noise level to +40 dBm.
* Accuracy: 0.5 dB (-30 to +20 dBm), 0.75 dB (-40 to -30 dBm, +20 to +40 dBm), 1.5 dB (-60 to -40 dBm)
* Average noise level: -112 dBm
* Reference Level: Setting range: -80 to +40 dBm
* Input attenuator: Setting range: 20 to 75 dB in 5 dB steps
* Detectors: POS PEAK, SAMPLE, NEG PEAK
* AM/FM demodulation: Demodulated waveform display and monitoring demodulated audio signal with internal speaker
* IF Output: 21.4 MHz: 10 dBm
The MS8604A Digital Mobile Radio Transmitter Tester evaluates the major characteristics of transmitters used in the North American Digital Cellular System, Japan's digital mobile telephone system, and cordless telephones.
* 100 Hz to 8.5 GHz frequency range
* Measures spurious emissions over a broad frequency range
* Measures RF signals directly up to 10 watts (Average Burst Power)
* Ideal for high-speed measurement of carrier frequency, spurious emissions, occupied bandwidth, antenna power, leakage power during carrier-off, transmission ramp-up power, modulation accuracy, leakage power of adjacent channel, and signal transmission rate of digital mobile transmitters
* Option 01 = Reference Quartz Oscillator
* Option 02 = RS-232C interface (for external control)
* Option 11 = Measurement Software Ver. 3 (PDC)
* Option 12 = Measurement Software Ver. 3 (PHS)
* Option 13 = Measurement Software Ver. 3 (NADC)
* Option 15 = Measurement Software Ver. 2 (GMSK)
Approx Weight: 60 lbsBoxed Dim: 27x25x15 in
