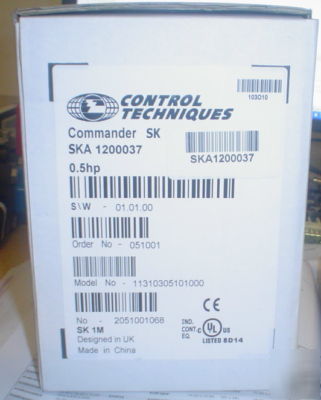

Ska 1200037 SKA1200037 - factory sealed -1 year waranty
1/2HP , .37KW , 0-1500HZ OUTPUT
* Speed reference input: 0-10V, 0-20mA, 4-20mA, (-10 to +10V SM-I/O Lite option)
* 4 digital inputs- World (enable, run forward, run reverse, local/remote)- USA (not stop, run, jog, local/remote)
* Switching frequency: 3 (default) 6 12 18 kHz
* Output frequency 0 to 1500Hz
* Accel and Decel ramps (linear and S type)
* Serial communication - Modbus RTU RS485 via RJ45 connector- Baud rate 4800, 9600, 19200or 38400 bits per second
* DC injection braking as standard
* Dynamic braking transistor as standard
* Dynamic motor flux V/Hz for energy saving
* Quadratic motor flux V/Hz for fan and pump optimization
Undervoltage, Supply and DC Link overvoltage, Phase loss, Drive overload, Instantaneous overcurrent, Short circuit, Ground fault, Drive thermal, Watchdog, Motor thermal
* Maximum overload 150% of rated current for 60s
* Intelligent Thermal Management (ITM) optimizes switching frequency
* Automatic no-spin autotune for fast performance optimization
* NEMA 1 rating with optional cover
* Ambient temperature -10 to +40 C @ 3kHz switching
* Humidity 95% maximum (non-condensing)
* Electromagnetic Immunity complies with EN61800-3 and EN61000-6-3 and 4
* Electromagnetic Emissions complies with EN61800-3 (second environment) as standard. Complies with EN61000-6-3 (residential) and EN61000-6-4 (industrial) generic standards with optional footprint EMC filter
