New craftsman carrier portable scooter mobility medical
(Designed To Fit Virtually Any Vehicle, Car, Truck, Van Or Suv)

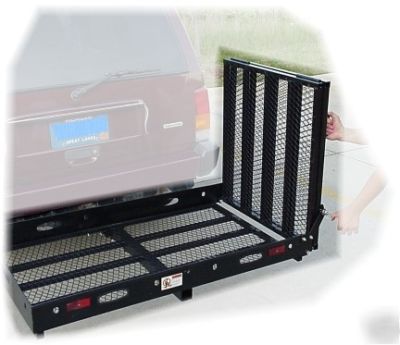

The Craftsmen (2) In (1) 550 Carrier's loading ramp is 28 1/4" wide by 60" long providing a gradual slope for easy loading of your scooter or wheelchair. A solid position handle on the ramp allows for easy folding and unfolding and tie down straps are included with rubber coated hooks which can be hooked onto any of the 10 tie down holes featured on the 4 1/4" tall ramp sides. The ramp is easily attached even after the carrier has been attached to the vehicle making the installation very easy. The rear of the carrier has 2 reflectors for greater visibility at night.
Supporting the carrier is the heavy duty 2" hitch tube which features 4 bolts and a safety pin underneath to allow the hitch tube to be removed from the carrier. The hitch tube has a 5/8" hitch pin hole for securing the carrier to your vehicle and will work on class I, II, III, or IV hitches. A bolt fitted underneath the folding hitch tube allows you to level the carrier so that the pin holes line up to secure the carrier in the unfolded position. The distance between the hitch pin hole and the carrier is 13 7/8" unfolded and when the carrier is folded the distance is 4 3/4".
* 60 in. center folding ramp.
* Ramp folds up and down easily.
* Ramp folds flat position when not in use.
* Carrier tilts up when not in use.
* Includes both class II and class III hitch.
* 14 slots for tie down straps
* Tray 49 1/8 in. x 28 1/8 in. of carrying area.
The Craftsmen (2) In (1) 550 Carrier is easy to use and flexible. Most all Lifts, Carriers and Ramps are limited to the class of hitch it was meant to attach to. The Craftsmen (2) In (1) 550 Carrier Allows you the flexibility to attach to any and all hitch's. Class II Or A Class III hitch. This now allows users to move the carrier from one vehicle to another freely without the concern of compatibility.
