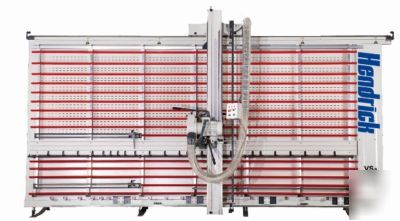

Hendrick vss 20.40 scoring vertical panel saw
Hendrick VSs 20.40 Scoring Vertical Panel Saw Series
Blade Motor: 5 HP totally enclosed fan cooled
Machine Voltage: 208/230/460 Volt, 3 Phase, 60 Hz.
Scoring Blade Rotation: 7800 RPM
Main Blade Size: 250 mm diameter x 30 mm bore
Scoring Blade Size: 125 mm diameter x 20 mm bore
Maximum Length of Cut: 157.5 (4000 mm)
Maximum Cut Height with Scoring: 78.75 (2000 mm)
Maximum Cut Height without Scoring: 87.5 (2220 mm)
Maximum Depth of Cut: 1.65 (42mm)
Dust Collection System: INCLUDED - Internal to machine
Bottom Material Supports: Precision steel wheels
Material Support Grids: Automatic shifting
Machine Frame: One piece, free standing, fully welded tubular steel
Machine Dimensions: 197 (5000 mm) W x 117 (2980 mm) H x 45 (1150 mm) D
Date of manufacture: September 2009.
Whitney Wiggin ****@hendrickmanufacturing.com
