Icom ic-F21 uhf portable two-way radio

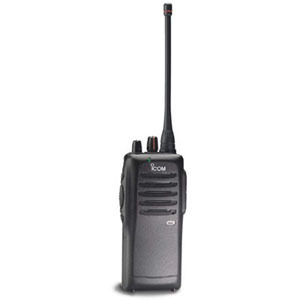

ICOM IC-F21 UHF 400-430Mhz PORTABLE TWO-WAY RADIO
Perfect for Business, Big or Small
For small business, hotels, hospitality, landscape, nursery, etc. who need economical and instant two-way communications. Also a wireless intercom solution for large retailers, warehouses, etc.
Keep in touch without interruption
Use a full 5/4 watts when you need it, or select a lower setting if you don t...you decide. Increase the range of your transmissions out-doors, and indoors where obstacles and walls offer challenges to your current equipment. Crystal clear communications.
Transmit button, volume control and channel selector are all you need. All three controls may be operated without removing from your belt. The perfect business tool that doesn t require training to use. Great for high turnover or retail shift situations.
Don t let the light weight or compact body fool you. This is a military spec. rugged radio that can take abuse and keep working. Don t worry about special training. Just put them out in the workplace and let them do their job.
Wide/narrow capability a good investment
May be operated on 12.5 or 25kHz wide channels. Easy transition to the new narrow channels as regulations will move in that direction in several years. A good investment that will adapt to the future. Won t be obsolete as the rules change.
Multiple group and individual selective calling
Compact and lightweight carry all day with no fatigue
Optional speaker mic, VOX headset, and much more
Optional alkaline or Ni-MH battery pack

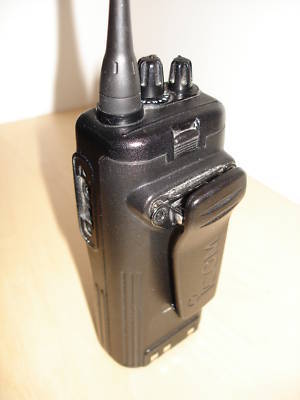

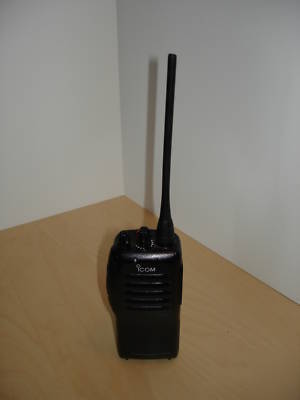

ICOM IC-F21 UHF Transceiver with battery, antenna and belt clip.
Frequency coverage (Rx and Tx)*: 400-430 MHz 440-470 MHz
Number of channels: Total 16 (rotary type) Total 4 (toggle type)
Channel spacing : 12.5 KHz, 25 kHz PLL channel step 2.5 kHz, 3.125 kHz (VHF) 5KHz, 6.25KHz (UHF)
Output power : 5 W, 2W or 1W (VHF) 4 W, 2W or 1W (UHF)
Spurious emissions : 73dBc typ.
Sensitivity 0.25 V (typ.) at 12 dB SINAD
Adjacent channel selectivity: at 25KHz - 70dB typ / at 12.5KHz 65dB typ
Spurious response rejection 70 dB (typ.)
Audio output power 500 mW (type.) at 5% distortion an 8 ohm
Current drain: Receive 70 mA (standby) / Transmit 250 mA (rated audio) 1.6 A (high)
Dimensions (proj. not included) 54(W) 128(H) 37(D) mm
