> 6A current limit icl thermistor ge cl-40 (qty 2 pcs)

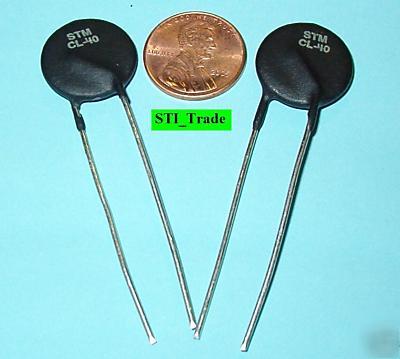

6A current limit icl thermistor ge cl-40 (qty 2 pcs)
2 GE CL-40 - Circuit Protection Thermistors
(Inrush Current Limiting Thermistors)
ICLs (Inrush Current Limiters) are a cost-effective way of limiting the inrush of current that can damage components in a switching power supply and other devices when the equipment is turned on.
http://sigma.octopart.com/3829/datasheet/GE-CL-40.pdf
Max. Steady State Current - 6 Amperes
Resistance @ Max. Steady State Current - 0.11 Ohms
"D" Max. Diameter - 0.77 in (19.5 mm)
"T" Max. Coated Thickness - 0.22 in (5.6 mm)
Lead Spacing - 0.328 in (8.3 mm)
Lead Length: 1.75 in (44.5 mm)
2 High Current ICL Thermistors.
Build 2 copies of a current limiting circuit .
These are great for the small electronic projects or prototypes where a high current limiting thermistor is required.
