#10045 - moore #3 precision jig grinder

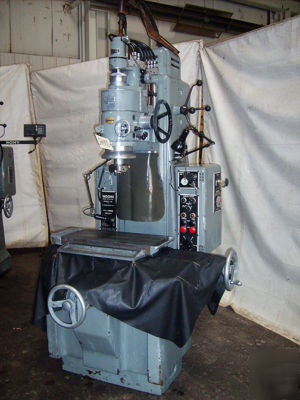

MOORE #3 PRECISION JIG GRINDER

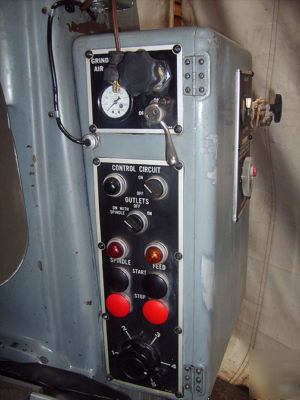

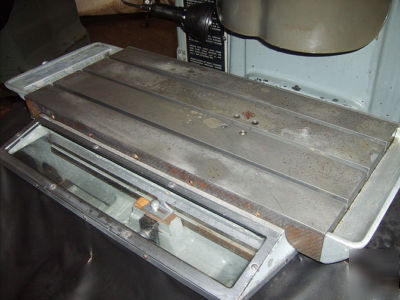

Table working surface 11" x 24"
Table travel (longitudinal) 18"
Spindle housing vertical travel 12-5/8"
Spindle vertical travel 3-5/8"
Table top to wheel collet 2"-18"
Spindle to column below ways 13-1/2"
Main spindle speeds 25 - 225 RPM
2 - 120 cycles/min. infinitely variable at 1 inch/stroke setting
Grinding wheel speeds 6,000 to 175,000 RPM with optional grinding heads
Grinding capacity (hole diameter) 1/64" - 3-1/2"
Angular adjustment of spindle Up to 1-1/2 deg. from center line (3 deg. incl. angle over full vertical travel)
Radial offset of grinding spindle:
Coarse adjustment from behind center to 1-1/8" beyond center.
Fine adjustment in increments of .0001" for a distance of .075" (1.9mm) anywhere within the full coarse adjustment range.
Overall dimensions: (approx.) 57 -1/2" L-R x 58-1/2" F-B x 91" H
