New holophane retailer 400 watt mh ballast RE400PPMTJNW
Min 105 Degree C Supply Conductors
Intended Use: Indoor Remote Ballast for Remote Retailer Optics
Features: Housing - Designed for Remote Retailer Optics - compact housing for areas with limited headroom. Formed steel housing finished with thermalset, electrostatically applied polyester paint over seven stage pre-cleaning treatment provides exceptional corrosion resistance. Ballast and solid state starters potted in epoxy for quiet operation.
Ballast - Holophane designed and manufactured, high power factor (over 90%), 1.0 ballast factor, copper wound ballast. 100% tested to provide full lamp output, while consuming less energy.
Installation - One piece full access cover simplifies wiring connections. Key holes and slots on housing mounting lugs provide flexible installation. Knockouts provided for 3/4" and 1" conduit.
Listings: Meets ANSI C82 Ballast standards. UL - 1029 listed, 40 C

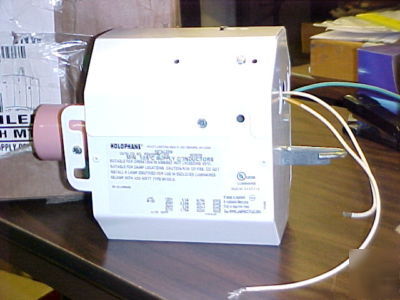

All we know is what it says on the box and the label on the product, which is the 'catalog number' in listing. Says voltages 120/208/240/277, but we don't see a 120 wire coming out of so we're just not sure.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
