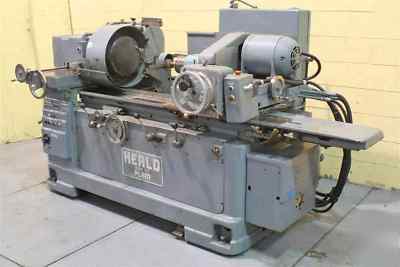

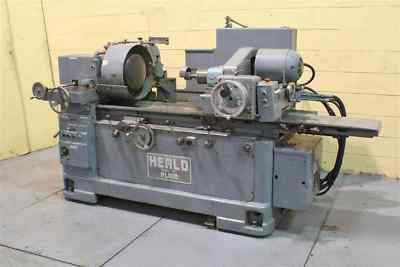

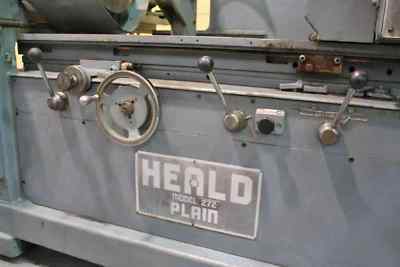

Heald model #272 plain grinder- nice
HEALD MODEL #272 PLAIN GRINDER- NICE!SERIAL .............................. 32331
MODEL ............................... 272 PLAIN
RATED SWING OVER BED ................ 18"
MAXIMUM SWING OVER BED .............. 20"
SWING INSIDE CHUCK GUARD ............ 18"
MAXIMUM HOLE LENGTH GROUND .......... 14"
MAXIMUM HOLE DIAMETER GROUND ........ 9-3/4"
MAXIMUM TAPER ANGLE (DEGREES) ....... 60
GRINDING SPEED ...................... 0 TO 20 FPM
RAPID TRAVERSE ...................... 35 FPM
WORKHEAD SPEEDS ..................... 133 - 200 - 266 - 400 RPM

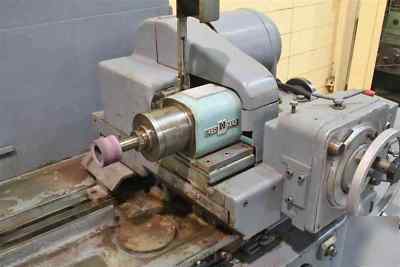

11000 RPM RED HEAD #9-2 INTERNAL GRINDING SPINDLE

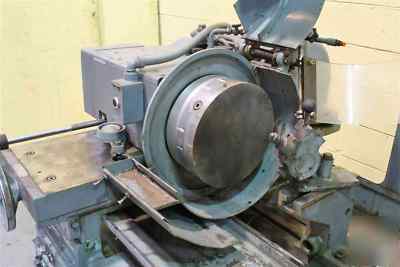

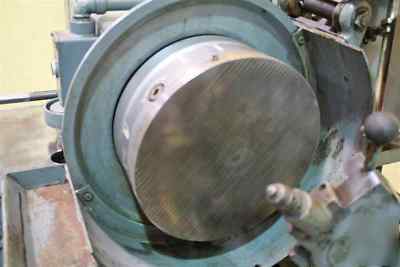

12" PNEUMATIC WORKHOLDING CHUCK
4-SPEED 1.5/1/.75/.5 HORSEPOWER WORKHEAD MOTOR
5 HORSEPOWER GRINDING SPINDLE MOTOR
