Schrader bellows 00707300 7047300 704-7300 500 valve
SCHRADER BELLOWS 00707300 7047(***) 704-7300 500 VALVE

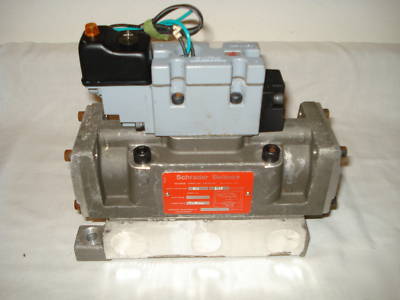

This is a NEW in the box SCHRADER BELLOWS 007047300 500 VALVE WITH 3/4 Sub-Base Assembly. 500 Series Automotive Style Valve. Contains L7352810253 Pilot Valve and 704-8111 Power Valve.
Solenoid Operated, Non locking
Interface complies with automotive industry
Poppet design offers superior flow and response.
Passed automotive endurance test surviving
injections of Arizona road dust.
Suitable for Lubricated or Non-Lubricated service.
Non-locking manual override standard.
Brad Harrison receptacles for convenient, trouble-free
connections (other wiring options available).
Indicator lights standard for 120V 60Hz & 24VDC
Field convertible to external pilot for vacuum and
Uses a 125 series as pilot section to simplify
covers and captive hardware for serviceability.
The 500 series valve is designed for extended life under
contaminated conditions and is used for 4-Way operation,
or a cylinder port is plugged for 3-Way operation.
Model Selection - Valves (120V 60Hz)*
If you have any other questions, please email me directly at ****@aol.com and I will write you back promptly.
