New port klinger BGM80PP motorized goniometric cradle

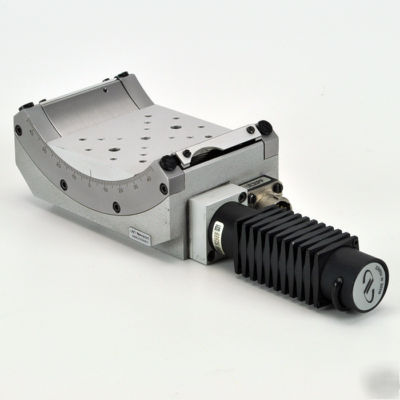

Newport Klinger BGM80PP Motorized Goniometric Cradle Used
Model/Part No:BGM80PP Our Item ID: 3635
Newport/Klinger BGM80PP Motorized Goniometric Cradle/Stage Goniometer.
BGM Series goniometric cradles rotate on a transverse axis above the platform. Compared to 360 rotation stages, they offer maximum free access to the rotating part and allow construction of very compact multi-axis rotation assemblies. BGM cradles are designed so that orthogonal mounting of two adjacent-size cradles (e.g., BGM50 and BGM80) provides two perpendicular axes of rotation at about the same point in space. Mounting a rotation stage under the assembly adds a third orthogonal rotation axis through the same point.
Max Speed: 20 per second Resolution: .01
Item Tested?: Not TestedPhysical Condition: Good; Working Condition: Not Tested, or Unable To Test1 | 14x 10x10 | 1
