Mini-box wrap-box-1A1E
Industrial Die-Cast Aluminum Design
Designed to withstand the toughest environments, the WRAP-BOX outdoor enclosure is a small, light, yet very solid wireless outdoor enclosure. The WRAP-BOX is rated NEMA-67 providing complete protection against ingress of dust (6) as well as protection against immersion in water (7).
- Enclosure Seal Operating temperature -60C to 230C
- Heat Trap: +6.5 Celsius under full sun (~100,000 Lux)
- Temperature raise using a 5-10Watt heat source (WRAP + radio board): +5.5 Celsius
- Inside measurements: 180x125mm x 46mm
- Supports masts up to 3" diameter
- Native support for ALIX.3x boards
- Native support for nano-ITX boards
- Other boards types require mounting plate
Note: Outdoor Omni Antenna, N-type pigtails and wallmount bracket not included

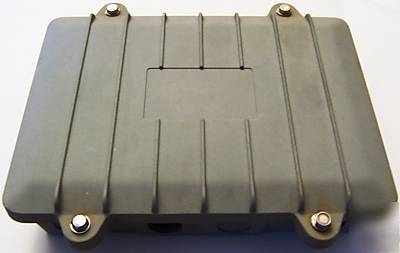

All units are in similar condition to the one pictured.
