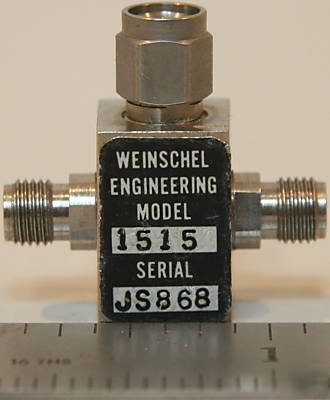

Weinschel 1515 resistive power divider dc-18 ghz 1W
Weinschel 1515 Broadband Resistive Power Divider DC-18 GHz 1 Watt
* Insertion Loss: 6 dB nominal, -0.2 dB, +1.2 to 10 GHz, 1.5 to 18 GHz
* Maximum Input Power: 1 watt CW, 1 kilowatt peak (5 sec pulse width, 0.05% duty cycle)
* Number of Ports: 3, interchangeable for input and output
* Phase Tracking: 0 nominal between output ports
* Amplitude Tracking, DC-4: 0.2 dB
* Amplitude Tracking, 4-10: 0.4 dB
* Amplitude Tracking, 10-18: 0.5 dB
* Power Coefficient: < 0.005 dB/dB/Watt
* Temperature Coefficient: < 0.0004 dB/dB/ C
* Temperature Range: -55 C to +125 C
