New westinghouse circuit breaker PC32000 2,000AMPS * *
WESTINGHOUSE CIRCUIT BREAKER #PC32000, 2,000 AMPERE FRAME.

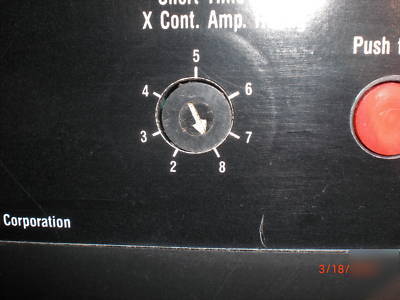

Molded Case type, 480VAC, 3-phase, 100,000KAIC, adjustable Short Time, UL-489 rated.
This item is NOT reconditioned or used and is complete, brand new and all Westinghouse factory-original.

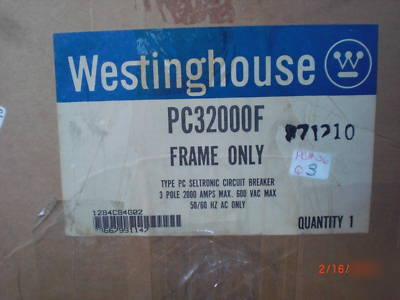

1- Circuit Breaker frame, Catalog-PC3200F,

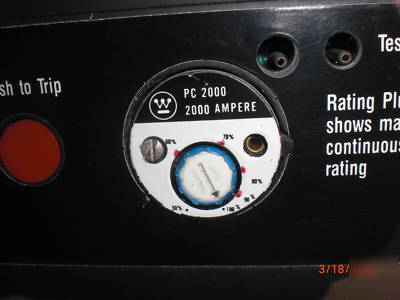

1- Rating Plug, adjustable to 50%-100% (1,000A to 2,000A infinite adjustment), of breaker frame rating,

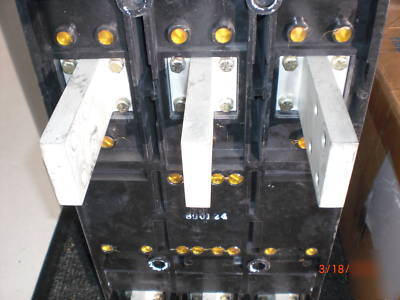

6- T-stud Terminals connectors for LINE AND LOAD sides,
All of the above are genuine Westinghouse manufactured in the U.S. As a unit, it comes with the Long and Instantaneous (L, I,) solid state Electronic trip. (Not a Switch or not a Contactor; and not the older mechanical Thermal-Magnetic models PA or PB tripped versions).
Circuit Breaker Shopping Comparison Guide:
1. Is the compared item actually a Circuit Breaker? (A Circuit Breaker has an internal sensor and circuitries to detect short circuit and overcurrent conditions as opposed to a Switch or Contactor only that have none of these feature).
2. Is the compared item the latest Manufacturer model, Catalog PC32000 and not the previous models with Catalog PA32000 or PB32000?
3. Is the compared item with the Manufacturer s latest solid state Long and Instantaneous L,I, sensors as opposed to the older mechanical Thermal-Magnetic circuit versions?
4. Is the compared item new as opposed to used, refurbished, reconditioned, etc?
5. Is the Rating Plug 50-100% adjustable that will allow full circuit protection adjustability feature that can crank down to 1,000A and everything in between as opposed to a fixed Rating Plug and therefore only limited to that single rating only?
6. Are the T-Stud terminal connectors for the Line and Load side included? (T-Studs are very costly if purchased separately).

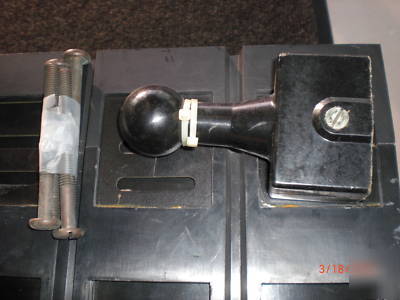

7. Are the original Manufacturer accessories such as Handle Extension and Mounting Hardware included? (If not, they have to be purchased or supplied separately).

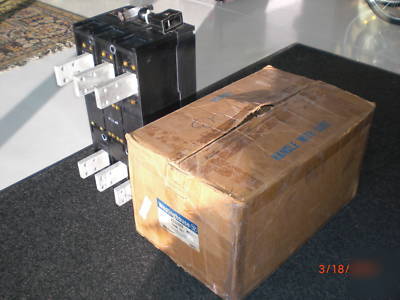

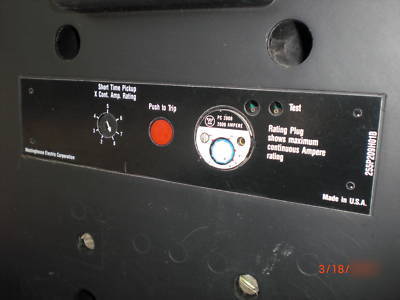

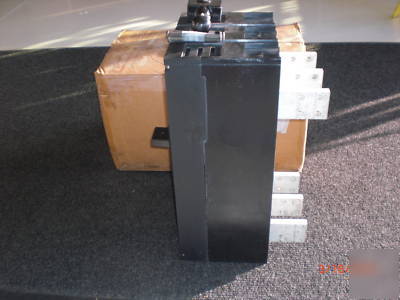

Please note that the front view is a Stock Photo. The rest are the item s actual photographs.
For additional information or request for additional photos, please let us know.
