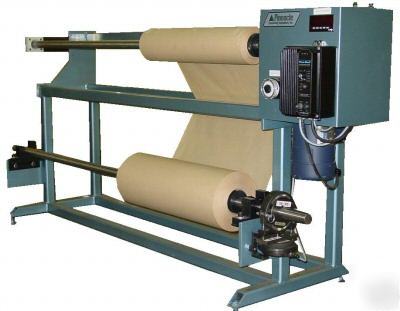

Ez rewinder reroller, rewinding slitter module slitting
YOUR LOW COST SOLUTION TO REWIND ROLLS OF MATERIALS TO
* PRODUCTIVE, SIMPLE, SAFE, LOW MAINTENANCE
* REWINDS MOST MATERIALS INCL. PAPER, VINYL, AND LAMINATES TO 12" DIA
* RAZOR SLIT OPTION AVAILABLE - PIVOTING BAR (SHOWN BELOW)
* CAPACITY UP TO 14" REWIND, STANDARD 24" UNWIND (LARGER UPON REQUEST)
* 60" WIDE MATERIALS (OTHER SIZES AVAILABLE 12" - 144")
* CANTILEVERED COMPRESSION SHAFT REWIND WITH CORE CHUCKS - SIMPLEX
* DROP-IN UNWIND SHAFT WITH 3" AUTO LOCK CORE CHUCK / END COLLAR PLUGS
* SIMPLE DRAG STRAP / WEIGHT POCKET TENSION CONTROL ON UNWIND
* MECHANICAL LAY-ON LENGTH COUNTER TO MONITOR MATERIAL LENGTH
* VARIABLE SPEED DRIVE W/EASY SPEED POT CONTROL, WEB SPEED TO 150 FPM, 110v STD. POWER
* PROGRAMMABLE LENGTH COUNTER TO STOP MACHINE AT PRESET LENGTH, OR MECHANICAL LENGTH READOUT
* QUICK CHANGE CUTTER BAR AND ADJUSTABLE RAZOR BLADE HOLDERS W/ TILT ENGAGE LEVER
* AIR LEAF SHAFTS FOR UNWIND AND/OR REWIND - QUICK FILL AIR GUN
* CASTERS FOR MOBILITY - MAXIMIZE FLOOR SPACE UTILIZATION
* MECHANICAL & AUTOMATIC TENSION CONTROL SYSTEMS
* EDGE GUIDING ON MASTER ROLL TO CORRECT TELESCOPING & MAXIMIZE MATERIAL UTILIZATION
* OTHER CORE SIZES THAN THE 3" STANDARD
OTHER STANDARD EZ ECONOMY MACHINES:
ALL STANDARD FEATURES AND OPTIONS LISTED ABOVE, PLUS:
* RAZOR CUTTER BAR - TILT LOCK ENGAGE - QUICK LOCK BLADE HOLDERS
* S-WRAP PIVOTING MODULE FOR WEB TENSION CONTROL
* CAPACITY 14" REWIND, 24" UNWIND
CSRE II COMPACT SLITTER REWINDER
* DUPLEX SLITTER / REWINDER EZ TO SETUP & USE
* DROP-IN AIR LEAF REWIND SHAFTS W/ QUICK LOCK DRIVE ENGAGE
* PNEUMATIC BAND BRAKE ON UNWIND FOR TENSION CONTROL
* LARGE DIAL REGULATOR ON CONTROL PANEL FOR TENSION ADJUST
* SIMPLE SPEED POT CONTROL - NO TRAINING REQUIRED
* CAPACITY 14" REWIND, 18" UNWIND
* RAZOR, SCORE, OR SHEAR CUTTING
* HARDENED ANVIL/ SLEEVES, DOVETAIL SLIDE, QUICK CONNECT LINES
* LARGER VARIABLE SPEED DRIVE TO 300 FPM, 230v 3ph
* SAFETY AUTO-LOK CHUCKS ON REWIND
* LARGER VARIABLE SPEED DRIVE TO 600 FPM, 230v 3ph
* CAPACITY 18" REWIND, 30" UNWIND (LARGER SIZES AVAIL)
* NIP DRIVE ROLL - ISOLATED TENSIONS
* AUTO TENSION CONTROL ON REWIND, PNEUMATIC BRAKE UNWIND, STANDARD
PINNACLE CONVERTING EQUIPMENT specializes in both STANDARD and CUSTOM Machines for the converting industry including:
* SLITTERS / REWINDERS / SHEETERS
* RAZOR / SCORE / HOT KNIFE / ULTRASONIC
* SIMPLEX / DUPLEX / DIFFERENTIAL REWIND
* CENTER SHAFT, CENTERLESS, BED ROLL DESIGNS
