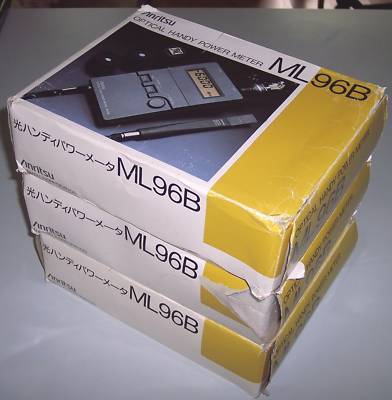

Anritsu ML96B optical power meters lot of 3 (all 3)

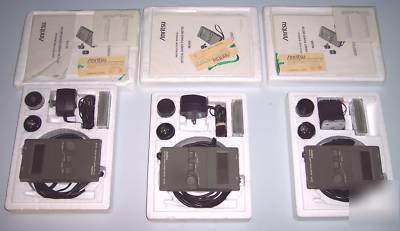

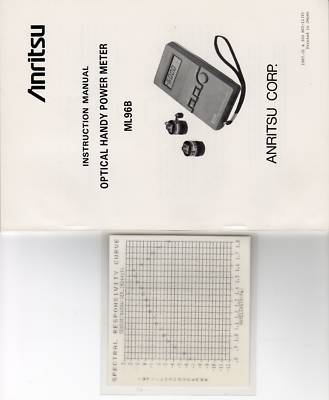

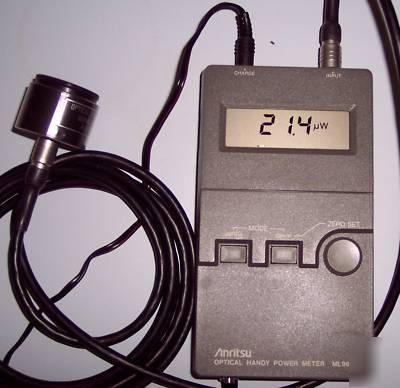

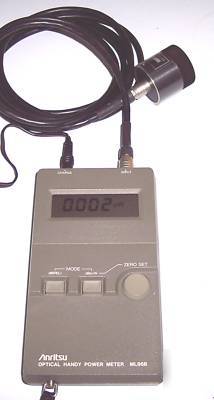

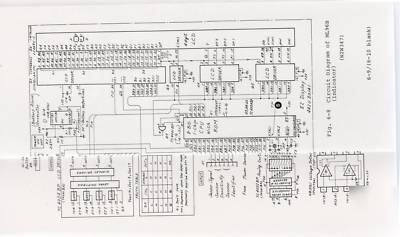

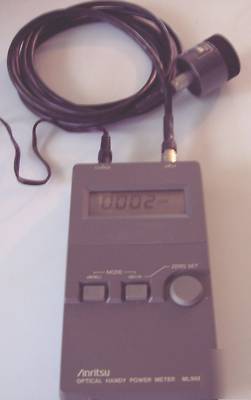

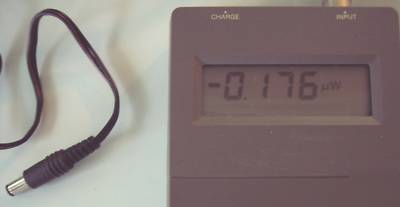

The 6 cell (9Volt) adapter looks like it has never been used. The Chargers are 8.7 volt so a third charger would be easy to have by use of the connector on the 6 cell adapter and a common vender charger adapter....Or run the 3rd unit on an external battery pack or bench supply. All three meters power up and zero with their sensors when connected to the external battery chargers. I do believe the internal battery packs are bad as all 3 meters change zero and go into the low battery mode shortly after being disconnected from the battery charger. The internal battery packs are 4.8V Nicad of one of the AA arrangements. The manuals are service manuals with schematics and parts lists. One of the photos shows a partial schematic. Please see the photos and let us know if you would like us to do something for further verification. There are photos wiyh the sensor cap installed and measuring the ambient light in the room.
