> 50 pcs. idt# IDT61298SA15Y, ic,sram,64KX4,cmos,soj,28PI

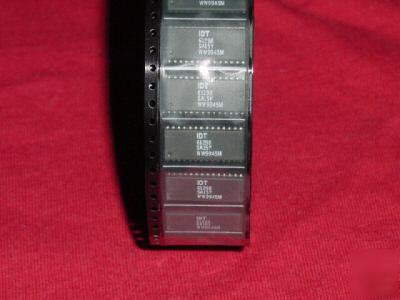

50 pcs. idt# IDT61298SA15Y, ic,sram,64KX4,cmos,soj,28PI
The following item has just been added to our store in a larger qty. This item is for 50 pcs. only!
IC,SRAM,64KX4,CMOS,SOJ,28PIN,PLASTIC
64K x 4 high-speed static RAM
OE) pin available for added system
High speed (equal access and cycle times)
Produced with advanced CMOS technology
Inputs/Outputs TTL-compatible
Military product compliant to MIL-STD-883, Class B
The lDT61298SA is a 262,144-bit high-speed static RAM
organized as 64K x 4. It is fabricated using IDT s highperformance,
high-reliability CMOS technology. This state-ofthe-
art technology, combined with innovative circuit design
techniques, provides a cost-effective approach for memory
The IDT61298SA features two memory control functions:
CS) and Output Enable (OE). These two functions
greatly enhance the IDT61298SA's overall flexibility in
high-speed memory applications.
Access times as fast as 12ns are available. The IDT61298SA
offers a reduced power standby mode, I
the designer to considerably reduce device power requirements.
This capability significantly decreases system power
and cooling levels, while greatly enhancing system reliability.
All inputs and outputs are TTL-compatible and the device
operates from a single 5 volt supply. Fully static asynchronous
circuitry, along with matching access and cycle times, favor
the simplified system design approach.
The IDT61298SA is packaged in a 300 mil, 28-pin SOJ,
providing improved board-level packing densities.
