Motoroal maxtrak low band 42.0-50 mhz

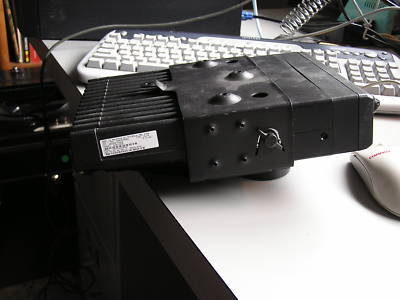

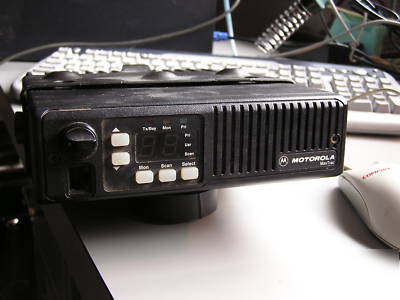

Motorola MaxTrak d51mja9ja5ak...60 watt
Low band..42.0-50 mhz..(rf board is hlb4101b)

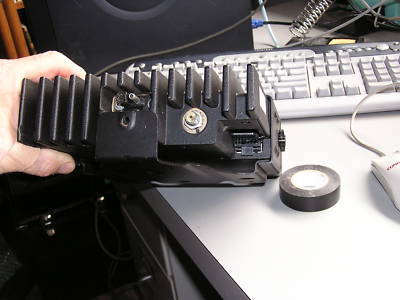

16 pin connector on back..(logic board is hln 9313b)
16 channels but can be change to 32..(I think)..firm ware upgrade.
Several from this large lot of radios have been converted and work well...I'm just lacking in time and interest to mess with it.
Come with black hand mic..hmn3596a
Long slide mounting bracket and wing nuts.
The only thing I can't find are the 4 small case screws....better none then the wrong ones..will keep looking and include if I find them.
