2005 multiquip silent generator 60KW diesel 1 & 3 phase

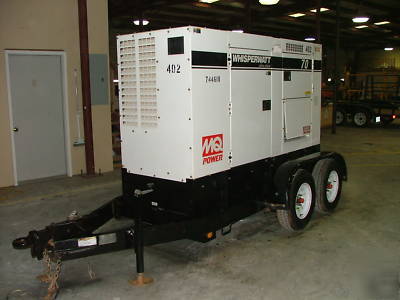

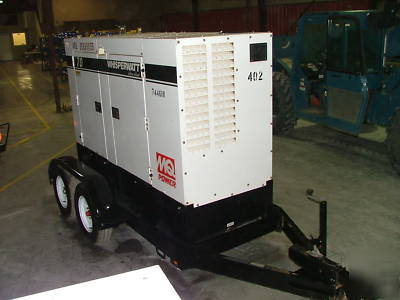

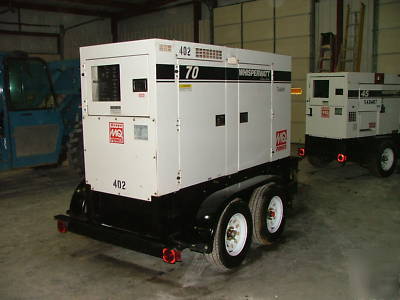

This is a very clean Multiquip generator in great condition. Everything functions as it should with no leaks of anykind. Load tested and ready to work. Large fuel cell for long duty cycles. Sound attenuated enclosure for Ultra Silent operation. Capable of both single & 3 phase power. Serviced on a routine schedule. Service records are available.
Design - Revolving field, self-ventilated, drip-proof, single bearing
Excitation - Brushless with AVR
Voltage 3 208, 220, 240, 416, 440, 480V Switchable
Voltage 1 120, 127, 139, 240, 254, 277V Switchable
Armature Connection Star with neutral / Zig Zag
Sound Level dB(A) Full load at 23 feet 60
1 120 Volt 155.5 Amps (4 wire)
1 240 Volt 77.8 Amps (4 wire)
Main Line Circuit Breaker Rating 175 Amps
Over Current Relay Trip Set Point 84 Amps
Recommended Fuel ASTM-D975-No.1 & No.2-D
Maximum Fuel Flow (per hour) 16 gallons (61 liters)
Maximum Inlet Restriction (Hg) 5.9 in. (150 mm)
Fuel Tank Capacity 103 gallons (390 liters)
