> 3.35X-180X stereo zoom inspection microscope, 9M camera

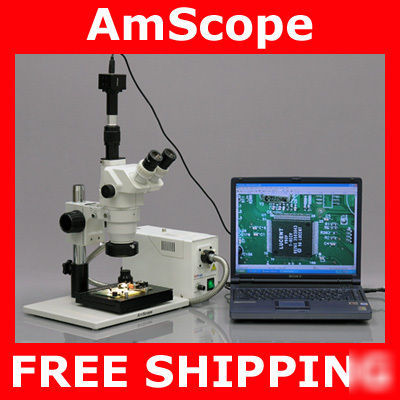

3.35X-180X stereo zoom inspection microscope, 9M camera
3.35X-180X STEREO ZOOM INSPECTION MICROSCOPE, 9M CAMERA
Brand Name: AmScope Model No: ZM-1TZ2-FOR-GT-9M Retail Value: $5,800
Just from looking at the eyepieces, you can tell the quality of the optical system of our microscopes. We offer you extremely super widefield high-eyepoint WF10X/22 eyepieces (where 10X/22 means 10X magnification power and 22mm field of view) while other sellers give you only WF10X eyepieces (no specification on the field of view implies it is less than 18mm). Here is the difference as shown in the picture below - our competitors' eyepieces are on the left, and our eyepieces are on the right:
* A great turnkey package of ultimate inspection microscopy system with 9.1MP USB2.0 PC Digital Camera
* Trinocular microscope zoom head with high quality color digital image system
* 3.35x-180x extremely large zoom magnification range
* 22mm extremely super widefield eyepieces
* 9.1 Megapixel high resolution full-screen images
* Capturing microscope still images or displaying full-screen real-time live video on your PC screen
* User-friendly software compatible with Windows 2000/XP/Vista 32-64 bit
* Saving microscope images in BMP, TIFF, JPG, PICT, PTL and other formats
* Conducting length, angle, area, and other measurements across microscope images
* Built-in reduction lens giving the same field of view images on your PC screen as that seen through eyepieces
* Trinocular head with 45 inclined eye tubes
* Super high resolution with great flatness and contrast
* Extremely sharp and clear images
* 30mm SUPER widefield high-eyepoint eyepieces with 22 mm field of view
* Sharp stereo erect images over a wide field of view
* Crystal clear original true color microscope images
* Dual eye tubes with adjustable diopter
* Extremely large working distance 8" (200mm)
* Super large alloy stand with stain resistant enamel finish
* Accurate alignment ensuring a fatigue-free long hour viewing
* Full metal chrome-plated mechanical components
Fiber optic ring light* 150W variable-intensity light source
* High intensity 21V,150W halogen bulb
* Perfect even Quartz halogen illumination without heating
* X-Y gliding table (stage) included
* Rubber eye guards included
* Five (5) year manufacturer warranty
* Head: 360 degree rotatable 45 degree inclined trinocular
* Eyepiece: 30mm super widefield high-eyepoint WH10X/22MM and WH20X/12MM
* Zoom Objective: 0.65X-4.5X
* Auxiliary Objectives: 0.5X & 2.0X
* Diopter Adjustment: +/- 5dp
* Stand: 12.5"x10"x0.75" (320x260x20mm) solid cast steel base
* Light Source: 150W/24V halogen bulb
* Accessories: paired eye-caps
* Trinocular Stereo Zoom Head
* Two Pairs of Extreme Widefield High-Eyepoint Eyepieces, WF10X/22 and WF20X/10
* One 9.1MP USB2.0 Microscope Digital Image System
* Super Large Stand with Focusing Rack
* Fiber Optic Ring Illuminator
* All Necessary Adapters Included
scope Digital Camera for PC Display
