44 ton strippit hydraulic cnc single station punch

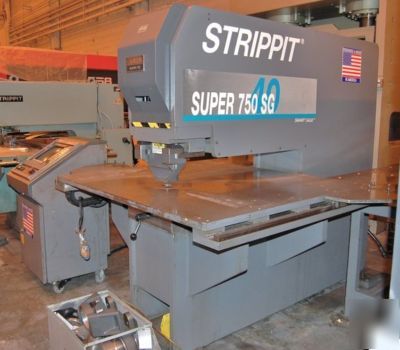

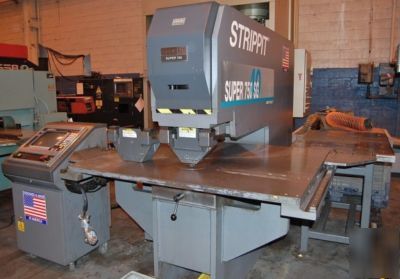

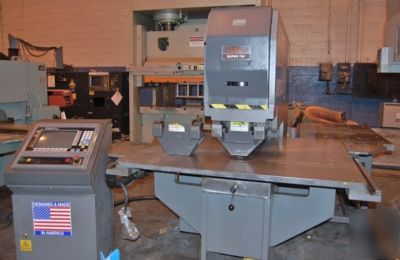

44 Ton Strippit Hydraulic CNC Single Station Punch
Tonnage Capacity ...................... 44 Tons
Maximum Material Thickness ............ .375"
Maximum Hole Diameter ................. 3.5 Dia.
Table Travel .......................... 30" x 72"
Axis Positioning Speed ................ 800"/Min.
Table Height .......................... 39"
Dimensions (Machine Only) ............. 106"W x 90"D

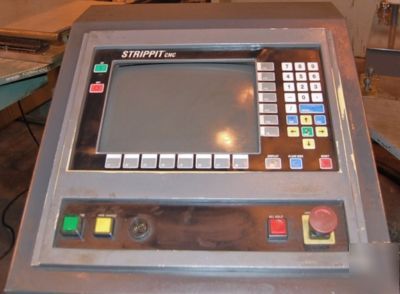

""Smart Gauge" PC Based CNC Control
Optional 72" X-Axis Gage w/ Ball Transfer Table
Direct Drive Servo Controlled Axes
