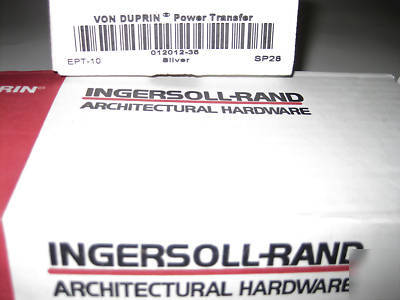

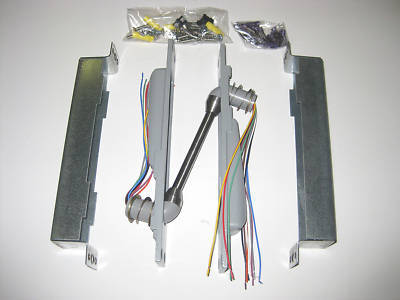

Access control power transfer ept-10 ingersoll-rand
Access Control Power Transfer EPT-10 Ingersoll-Rand
An EPT is an electrical power transfer, which is used to transfer wires from the door frame to the edge of the door. It is used when there is a door-mounted piece of electrified hardware which requires power and/or sends a signal to a remote location. Security consultants prefer the EPT over electric hinges or door loops, which perform the same function. It is also preferred over an electric hinge by most installers, because the EPT can be installed when the wiring connections are made, rather than being installed by the carpenter, removed for wiring, and reinstalled, getting mangled in the process. The EPT is concealed when the door is closed (the door loop is exposed and prone to abuse) and it can accommodate larger gauge wires than an electric hinge.
For more information go to manufacturer s web site (Von Duprin division of Ingersoll-Rand):
