24" x 60" hmt gap-type engine lathe #25797

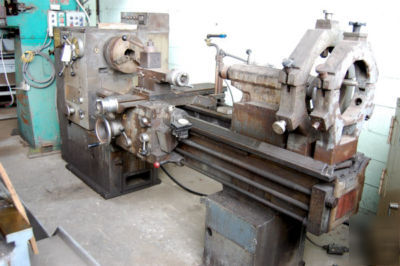

24" x 60" HMT GAP-TYPE ENGINE LATHE
New 1990, Serial No 4847-0190, Model NH32-60,
Hole Thru Spindle...................... 3.125"
Swing Over Bed Ways.................... 24"
Swing Over Cross-Slide................. 16"
Cross-Slide Cross-Feed Travel.......... 11.75"
Top-Slide Cross-Feed Travel............ 5.875"
Tailstock, Spindle Diameter............ 3.5"
Tailstock, Spindle Travel.............. 7.875"
Tailstock, Spindle Taper............... #5 MT
(24) Spindle Speeds Forward, Range..... 32 to 1900 RPM
(23) Carriage Longitudinal Feeds....... .002 to .075 IPR
(23) Cross-Slide Cross Feeds........... .001 to .038 IPR
(60) Thread Changes, Range............. 1 to 56 TPI
(50) Metric Thread Changes, Range...... .5 to 28 MM
Main Motor, Horsepower................. 15 HP/1750 RPM
Weight, Approximately.................. 6500 LBS
