Weigh-tronix 3732 lp 100 lb x .02 lb scale, stainless

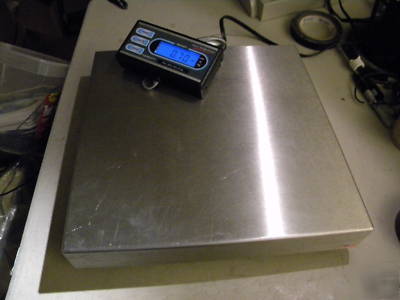

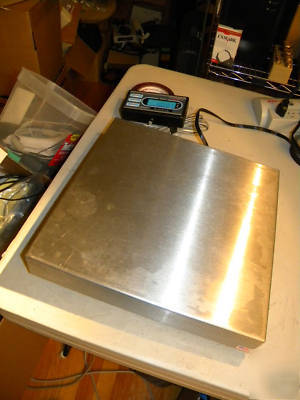

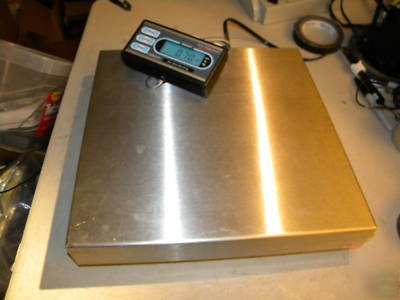

* Weigh-Tronix 3732 LP 100 Lb x .02 Lb Scale, Stainless Shroud
* Manual (Printed out from the Weigh-Tronix site)
* Power Supply (actually installed on the underside of the unit)
* Stainelss Weighing Platform
* This scale does not have the battery back up. It is an option.
Price (that others sell this for)
Construction: Mild steel base on 14 x14 Stainless steel shroud.

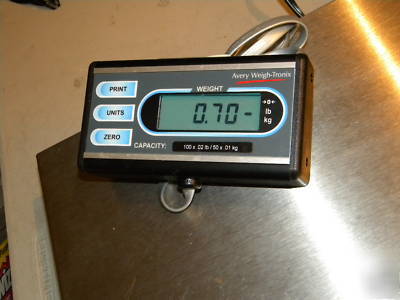

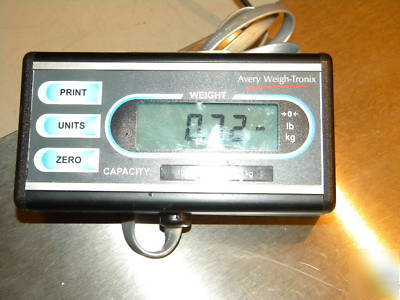

Display: Backlit LCD display with six .5 tall digits. Housed in a 6 aluminum alloy extrusion that has to be remotely mounted since the scale does not have the bracket to mount it in front. (Remote Display has
Units of Measure: lb, kg, g or oz. Front panel switching between units of measure (Note: only two units active at any one time).
Power: 20 VAC 10% - 15%, 60 Hz.
Internal Resolution: 100,000 internal counts of resolution.
Power Supply: Internally mounted
Overload:Up to 200% of scale rated capacity.
Battery Recharge Time: 6 hours when powered down.
Operating Environment: 41 F to 104 F (5 C to 40 C). 10 to 95% relative humidity, non-condensing.
Agencies: NTEP Pending (5,000 divisions Class III, C.O.C. # 02-069), UL/CUL
Options: Factory installed battery:
Up to 20 hours of continuous operation with backlight turned on. When used with the display backlight turned off or in auto mode, battery operation is extended up to 75 hours of operation. Internally mounted, sealed lead acid gel cell battery provides up to 500 discharge/recharge cycles. Battery fully recharges in 6 hours by plugging the scale into an AC outlet. Scale can be used while recharging.
Two power saving modes can be configured to turn the backlight off or shut down the scale after inactivity to preserve battery life.
Footswitch for zero or print (factory installed)
With 4 ft. or 10 ft. long cable assembly.
This scale is in excellent condition (I mean it looks new), and works perfectly. I guarantee no DOA.
