Hp agilent 86220A H80 sweep oscillator pi

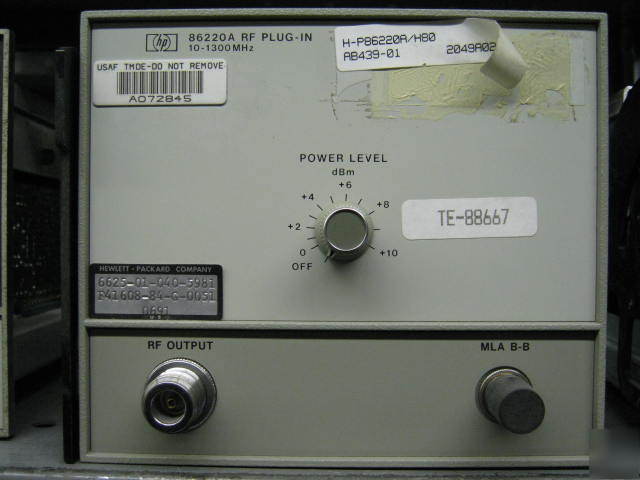

HP Agilent 86220A H80 Sweep Oscillator Pi
Powers Up, power and frequency looked OK.
The 86220A Single-band RF Plug-In is designed for use with 8620A or 8620B Mainframes. This series of plug-ins make extensive use of microelectronics for superior performance and high reliability. Microcircuit PIN modulators in the plug-ins provide RF level control and amplitude modulation with virtually no frequency pulling.
* Frequency range of 10MHz to 1.3GHz
* Maximum leveled power of +10 dBm
* Harmonic/Spurious 30/40 -dB
