Square d model 4 mcc 600A motor control bucket 8536 s

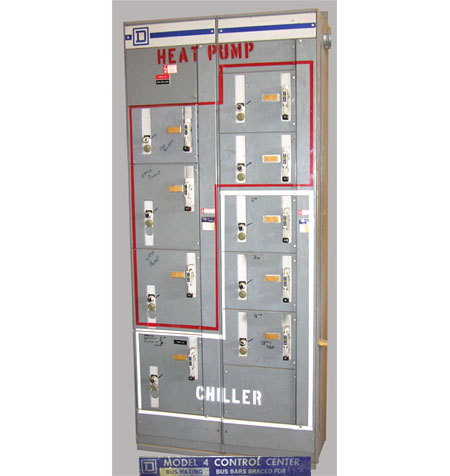

Square D Model 4 MCC 600A Motor Control Bucket 8536 S
Square D Motor Control Center MCC Model 4 with Motor Control Starter Buckets:
Nema Size 1: 7.5 to 10 HP Nema Size 2: 10 to 25 HP & Nema Size 3: 25 to 50 HP Motor Start Buckets
Model: 4 MCC Motor Control Center
* Class: 8536 Type: SCO 3 NEMA Size 1
* Class: 8536 Type: SDD 1 NEMA Size 2
* Class: 8536 Type: SEO 1 NEMA Size 3
Square D Motor Control Center MCC Model 4 Features:
Square D motor control centers are an ideal option for clustering electric motor
control in a compact setup. The standing sections house control units, wire networks
and busses for power distribution. Square D motor control centers house components
like combination motor starters, branch feeder devices, lighting panel boards, and other
devices each in its own isolated space. This System is configured with 9 motor control
buckets ranging in HP from 7 HP to 50 HP depending on selected voltage.
Square D Motor Control Center MCC Model 4 included Bucket(s):
* Voltage: 200/230: 7.5 HP
* Voltage: 380/460/575 10 HP
* Voltage: 200: 20 HP
* Voltage: 230: 30 HP
* Voltage: 380/460/575: 50 HP
* Voltage: 200: 10 HP
* Voltage: 230: 15 HP
* Voltage: 380/460/575 25 HP
