Sherline *metric* 3.5 x 8" lathe 4100A w/chucks us made
This is the METRIC version of this USA made lathe.
All Sherline lathes and mills are dual voltage 110v / 220v
We are an official Sherline dealer.
We have lots of expierience using Sherline lathes and mills. Please feel free to ask technical questions!
When the Sherline lathe first came on the market over thirty years ago, its use of rigid, extruded components meant miniature machine tools were no longer just toys for producing simple hobby projects. They could now be considered serious machine tools built specially to produce accurate, small parts. Since then, we have not only added a vertical milling machine and extensive accessory line, we have also found ways to improve the accuracy and utility of the tools themselves. The introduction of CNC machines into our production facility has greatly improved the accuracy of Sherline tools. The lathes feature precision rolled leadscrews and handwheels graduated in thousandths of an inch (.001 ) or hundredths of a millimeter (.01 mm).
When used with its various accessories, Sherline lathes will perform a host of tasks. They will turn, face, bore, drill, ream, polish, cut tapers, and cut both inch and metric threads. When used with its vertical milling column attachment it can be used for milling, fly cutting, drilling, and boring operations.

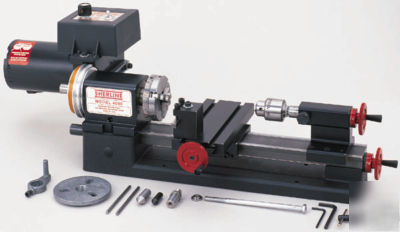

This item is the 4100 "A" Package which includes:
Model 4100 3.5" x 8" lathe PLUS:
1041 2.5" 3-jaw self-centering chuck
1072 Jacobs 1/4" tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
DC motor with electronic speed control
1/4" high speed steel presharpened right-hand cutting tool
#1 Morse and #0 Morse dead centers
Standard equipment for the basic model 4000 (metric 4100) lathe includes a powerful 90 VDC motor with electronic speed controller, a 2.75" (70mm) x 6.0" (152mm) crosslide, 15" (381mm) steel bed to allow 8" (203mm) between centers, standard 1-5/8" (41mm) laser engraved aluminum handwheels, pulleys, belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot, three-wire power cord and instruction booklet. This lathe can turn a part up to 3.5" in diameter over the bed or up to 1.88" over the carriage without riser blocks. With an optional riser block, parts up to 6" in diameter can be turned over the bed. The lathe has 8" of space between centers. The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed.
Lathe Specifications (see 4400 column)
90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications.
70-2800 RPM continuously variable by electronic speed control
Save money with this package deal!
