> New jet gh-1440ZX-tak lathe w/taper attachment 321467
New jet gh-1440ZX-tak lathe w/taper attachment 321467

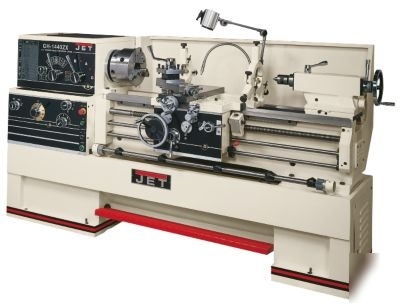

JET GH-1440ZX-TAK Lathe With Taper Attachment Installed
* ISO9001 certified manufacturer
* 3-1/8" bore spindle is supported by two tapered and one ball bearing
* Chrome molybdenum headstock gears are hardened, ground and shaved
* Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
* Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
* T-slotted compound slide featuring a four-way tool post
* One piece cast iron base absorbs vibration allowing heavier cuts
* High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
* Removable gap allows up to 23-5/8" diameter work
* Five position automatic carriage stop increases productivity
* Attractive chrome control levers, dials and knobs complete this impressive package
Spindle Mount D1-8 Spindle Taper W/ Sleeve MT-7 (MT-5) Number Of Spindle Speeds 12 Range Of Spindle Speeds (RPM) 42 - 1800 Number Of Longitudinal And Cross Feed Rates 122 Range Of Longitudinal Feeds (IPR) .0015 - .0913 Range Of Cross Feeds (IPR) .0006 - .0365 Number Of Inch Threads 61 Range Of Inch Threads (TPI) 1-5/8 - 72 Number Of Metric Threads 24 Range Of Metric Threads .05 - 20 Taper In Tailstock Spindle MT-4 Motor 7-1/2 HP, 230/460V, 3 Ph, Prewired 230V Prewired 230V Swing Over Bed 14" Swing Over Cross Slide 7-5/8" Swing Through Gap 23-5/8" Length Of Gap 12-1/4" Distance Between Centers 40" Spindle Bore 3-1/8" Max Tool Size 1 x 1 Compound Slide Travel 5-1/8" Cross Slide Travel 9" Carriage Travel 35" Tailstock Spindle Travel 5" Steady Rest Capacity 1/2" - 3-1/2" Follow Rest Capacity 3/8" - 7" Width Of Bed 13-3/8"
* GH-1440ZX-TAK Lathe with Taper Attachment Installed - 321467
* 10" 3 Jaw Chuck With Top Reversing Jaws
* 12" Independent 4-Jaw Chuck
* 12" Face Plate (16" Models)
* Large Capacity Steady Rest
* Fully Integrated Coolant System
* Full Length Splash Guard and Coolant Return
* Articulating Halogen Work Lamp
* Centrally Located Controls with Jog Button
* Mounting Pads and Levelers
* Spindle Sleeve (MT-7 to MT-5)
* Tool Box and Adjusting Tools
