1969 monarch ee all original precision engine lathe

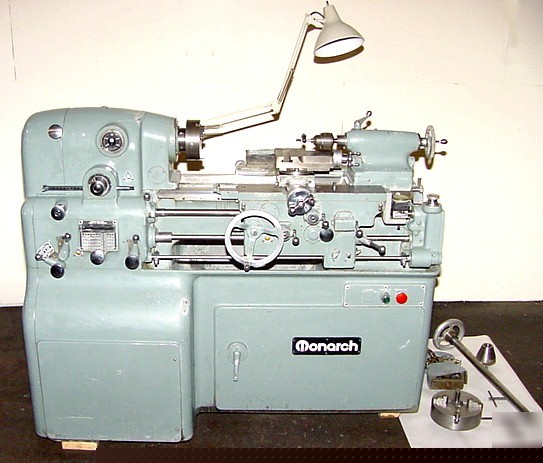

1969 MONARCH EE ALL ORIGINAL PRECISION ENGINE LATHE
10" X 20" MONARCH PRECISION TOOLMAKER'S LATHE,
MODEL: 10EE, S/N: 50164, NEW: 1970
SWING OVER BED ............................ 12-1/2"
SWING OVER CROSS SLIDE .................... 7-1/4"
DISTANCE BETWEEN CENTERS .................. 20"
HOLE THROUGH SPINDLE ...................... 1-13/32"
SPINDLE NOSE, CAMLOCK, TYPE ............... D1-3"
INFINITELY VARIABLE SPINDLE SPEEDS ........ TO 4,000 RPM
HEADSTOCK & TAILSTOCK SPINDLE CENTER TAPER #2 MORSE
TAILSTOCK SPINDLE DIAMETER ................ 1-1/4"
TAILSTOCK SPINDLE TRAVEL .................. 3-1/2"
THREADS, INCH (60) ........................ 3 - 184 T.P.I.
FEEDS, LONGITUDINAL (50) .................. .0005-.0161 IPR
APPROXIMATE WEIGHT ........................ 3,350 LBS.
APPROXIMATE FLOOR SPACE ................... 61" x 30"
* HANDWHEEL DRAWBAR TYPE 5-C COLLET CLOSER & NOSE PIECE
* TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
* 1/2" CAPACITY JACOBS DRILL CHUCK FOR TAILSTOCK
* ALORIS QUICK CHANGE TOOOPOST
* MULTIPLE POSITIVE LENGTH STOP
OUT OF A LABORATORIES R & D FACILTY
