17" swg 45" cc southwest ind. trak TRL1745P cnc lathe,
17" Swg 45" cc Southwest Ind. Trak TRL1745P CNC LATHE,

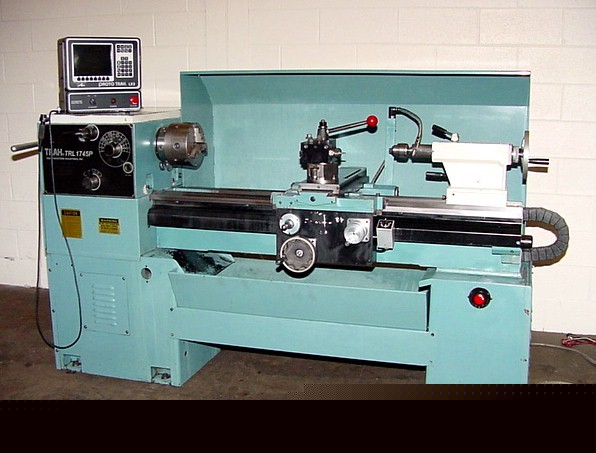

17" Swing 45" Centers Southwest Ind. Trak TRL1745P CNC LATHE, Proto-Trak LX2 Cntrl,7.5 HP,3-Jaw,5C-C
17" x 45" TRAK CNC TOOLROOM LATHE W/MANUAL HANDWHEELS
MODEL: TRL 1745P, S/N: 97-7243, YEAR: 1997
SWING OVER BED WAYS.................... 17-11/16"
SWING OVER SADDLE WINGS................ 16-1/8"
SWING OVER CROSS SLIDE................. 10-15/32"
DISTANCE BETWEEN CENTERS............... 45"
CROSS SLIDE TRAVEL..................... 9"
SPINDLE NOSE CAMLOCK................... D1-6"
SPINDLE THROUGH HOLE................... 2"
SPINDLE SPEEDS RANGES(12).............. 40 - 2200 RPM
TAILSTOCK SPINDLE TRAVEL............... 6-1/4"
TAILSTOCK SPINDLE TAPER................ #4MT
APPROXIMATE DIMENSIONS................. 87"L x 36"W x 57"H
APPROXIMATE WEIGHT..................... 3,500 LBS.
- TRAK 2-AXIS CNC CONTROL, MODEL: LX 2
- TURNS PARTS MANUALLY OR AUTOMATICALLY
- PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE
FOR SMOOTH, ACCURATE CONTOURS WITHOUT BACKLASH
- DORIAN QUICK CHANGE TOOLPOST WITH HOLDERS
- JACOBS DRILL CHUCK FOR TAILSTOCK
- COOLANT SYSTEM REMOVABLE CHIP PAN
