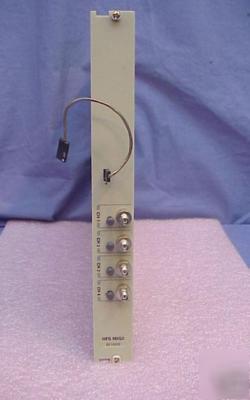

Tektronix HFS9003 HFS9DG2 input module option tested
used with the Tektronix HFS 9003.
The Tektronix HFS9DG2 is a data time generator card.
This Generator Card is for 50KHz to 630MHz bandwidth.
This unit provides 4 Channels of stimulus.
Transition time is 800ps to 6ns.
This card is ideal for ECL and GaAs device characterization
Complete Stimulus Setup in Just Minutes
Specify Data and Timing on Every Pin
Up to 630 MHz Repetition Rate
Fully Digital Implementation
Up to 640 or More Phase-locked Channels
Precision Channel-to-channel Timing Alignment
GPIB (IEEE 488) Programmable
Maximum Control and Flexibility
