Advantest Q8221 optical power meter with Q82214 sensor

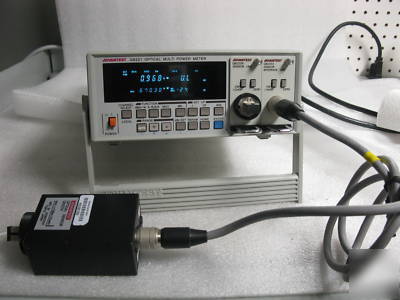

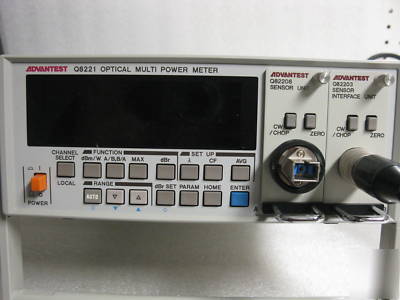

Q8221 Optical Power Meter Mainframe
and Q82214 Sensor Module This sale includes both the Meter and Sensor Module
# Flexible Combination - Two-channel, Plug-In System.
Ensures Accuracy Over the Entire Range of Power and Wavelength.
# Three Types of High-Sensitivity Sensors Noise Level : -94 dBm.
# High Power Input Optical Sensor (Q82227) Maximum Input Power : +27 dBm.
# Low Polarization Dependency Optical Sensors (Q82232, Q82233) : 0.003 dBp-p or less.
# Sensors with Less Reflection and High-Return-Loss Adaptor with Minimum Reflection.

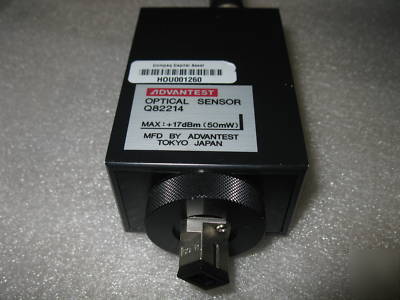

# Large-Diameter (5-mmf) Optical Sensor (Q82214). Collective Measurement for Tape Fibers
# High Resolution Measurement. Display 0.001 dB/0.0001 dB GPIB Output.
# High-Speed, High-Throughput Measurement. Max. 100 Times/Second.
# Recording Function, PDL Measurement Function.
#Analog Output Channel A and B
