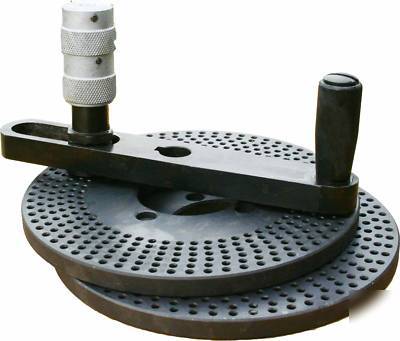

Dividing plates for 6", 8" ,10" and 12" rotary tables
This is the optional accessory precision ground for 6" , 8" 10" and 12" horizontal , vertical and tilting rotary tables.
The diameter of central hole is 1.496".
The accessory is complete with dividing plates, crank handle sets, screws, sectors, and washers. The two dividing plates, A and B, have the corresponding number of holes as in the table below. All of dividings of 2-66 and all divisible by 2,3 and 5 from 67-132 can be carried out precisely and quickly with this accessory.
The number of holes in two dividing plate:
A. 34.37.38.39.41.43.44.50.52.56.61
B. 46.47.49.51.53.54.57.58.59.62.64
