Coinco mag series bill acceptor / validator MAG30B

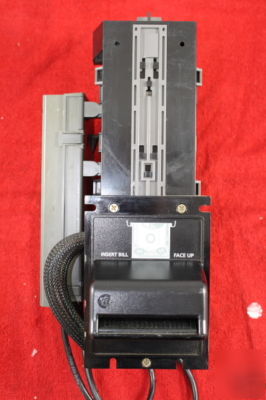

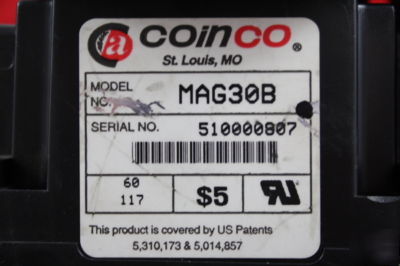

CoinCo MAG Series Bill Acceptor / Validator MAG30B
All units have been tested by us and guaranteed to be in working condition.
* Scalloped bill path for wet bill acceptance
* State-of-the-art electronic logic system
* Switch selectable acceptance of the following bills: $1, $2, $5, $10, $20
* Vandal resistant design protects against: saltwater, bill pullback, counterfeit bills
* Untilizes standard mounting and electrical interfaces
* High impact, non-corrosive plastic construction
* Easily accessible bill path

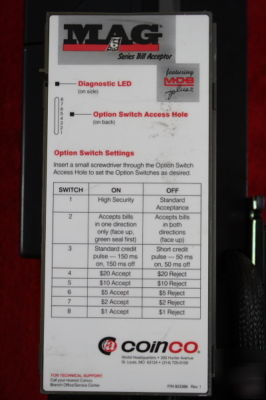

* Self-diagnostics communicated via status light
* Standard/High Level security switch
* Switch selectable acceptance of bills face up, in one or both directions.
* Optional hasp for locking bill box
* Manufactured and supported by CoinCo
Height: 11.16 Inches (from top of bill box to bottom of mounting plate)
Width: 5.26 inches (from logic board cover to mounting plate)
Depth: 4.29 inches (from mounting plate to back of stacker)
